BAND SAW
SEMI-AUTOMATIC VERTICAL

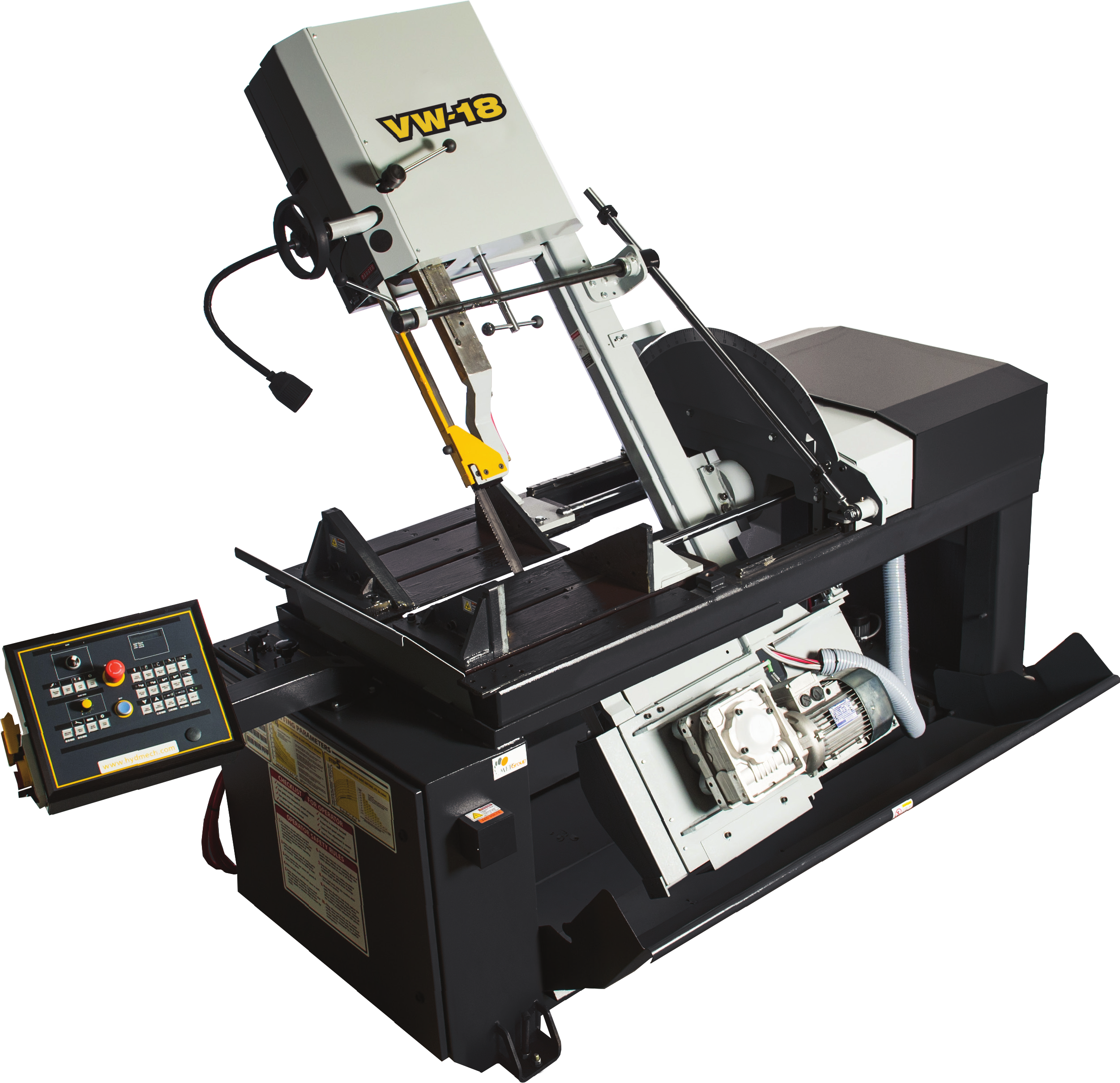

VW-18

The VW-18 II is a semi-automatic vertical band saw with the ability to miter from 60° left to 60° right.
This model is one of a kind in the HYDMECH line up with its saw head that can cut at 90° and be adjusted to cut at a 3° head cant.

ProMaxMachinerie Call for Price

Now available with optional powered head tilt and digital angle display.

Featuring a 22″H x 18″W capacity, 5 HP motor, and 1 1/4″ blade, the VW18 II is a reliable choice for all your light to medium-duty, vertical metal cutting applications.

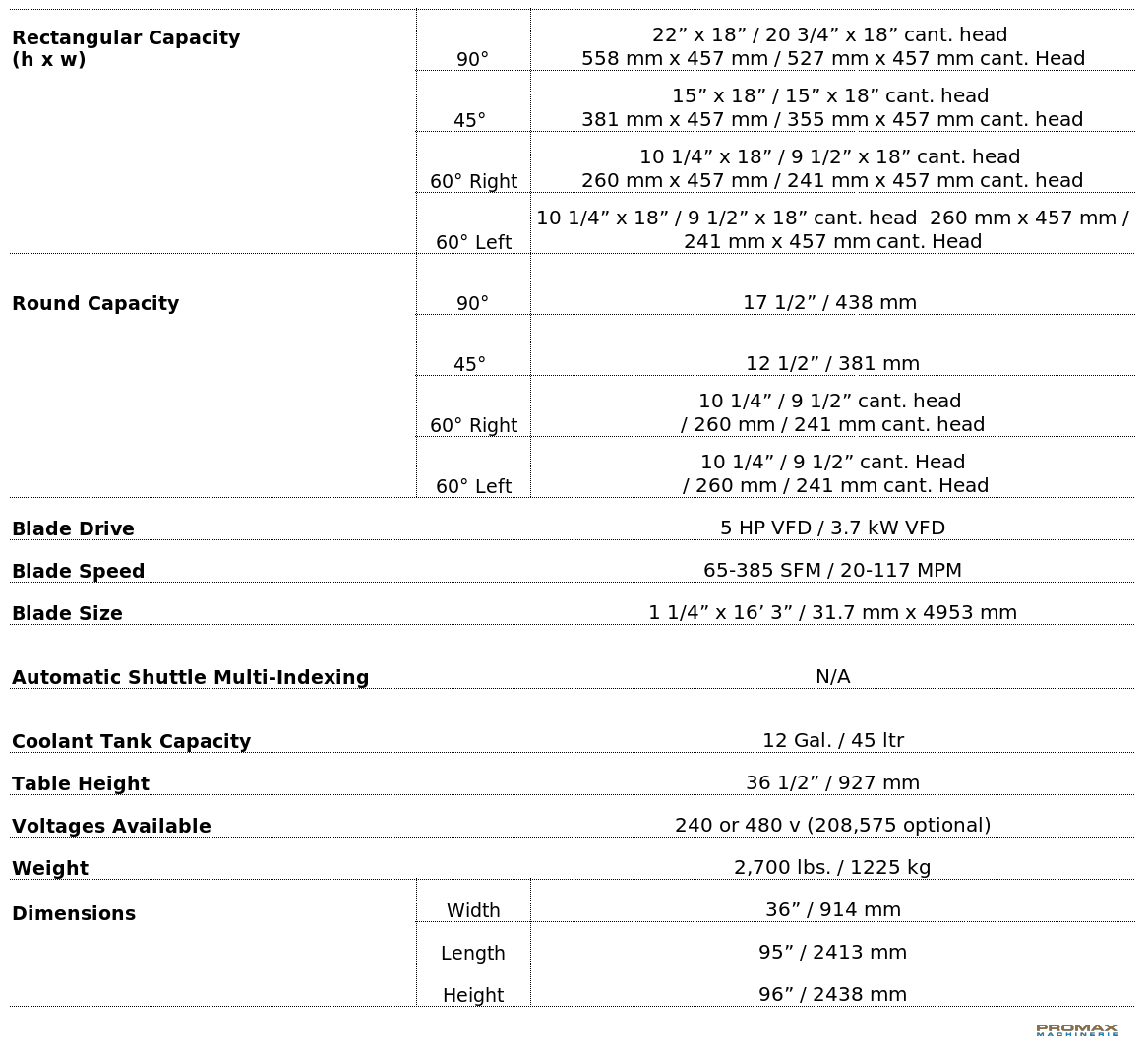

VW-18 Technical Specification

Standard-features

  • Adjustable 3° canted head
  • Double articulating, semi-automatic control
  • Two full stroking hydraulic vises
  • Manual precise head positioning from 60° left to 60° right
  • Digital angle display
  • Mechanically adjustable guide arm
  • On-demand hydraulics save energy
  • 5 HP VFD. True direct blade drive – no belts/pulleys
  • Hydraulic positive down feed
  • Cast iron band wheels
  • Replaceable blade brush
  • Robust steel base
  • Easy access electrical panel and hydraulics
  • Blade breakage switch
  • Mechanical band tensioning with digital readout
  • Replaceable carbide guide inserts
  • 5 HP hydraulic pump provides system pressure
  • Safety door interlocks
  • Flood coolant with wash down hose
  • Laser light
  • Work light



Options

  • Power tilt
  • Chip bucket
  • Hydraulic overhead bundling*
  • Mist lubrication
  • Work stop*
  • Tall square vise inserts
  • Variable vise pressure
  • Power transformer
  • Idler conveyors
