HydMech Vertical Column Contour Series
VCS-24 / VCS-36 / VCS-36HD
Heavy-duty, vertical contour-style saws are multi-purpose to cut a large range of materials – from steel to aluminum, to wood, plastics, rubber, and everything in between! These versatile machines are designed with the flexibility to cut tight radius sections or larger cut-off sections.
HYDMECH features the following VCS series, vertical contour band saws in our product line-up: VCS-24, VCS-36, and VCS-36HD.
The VCS models are manual vertical column contour band saws with variable frequency drive.
Throat ranges from 18″ – 36″, work heights from 12″ – 20″, 3 – 15 HP motor, and the ability to utilize blades from 1/18″ to 1″, the HYDMECH VCS Series machines are the ideal choice for all you vertical contour cutting needs.

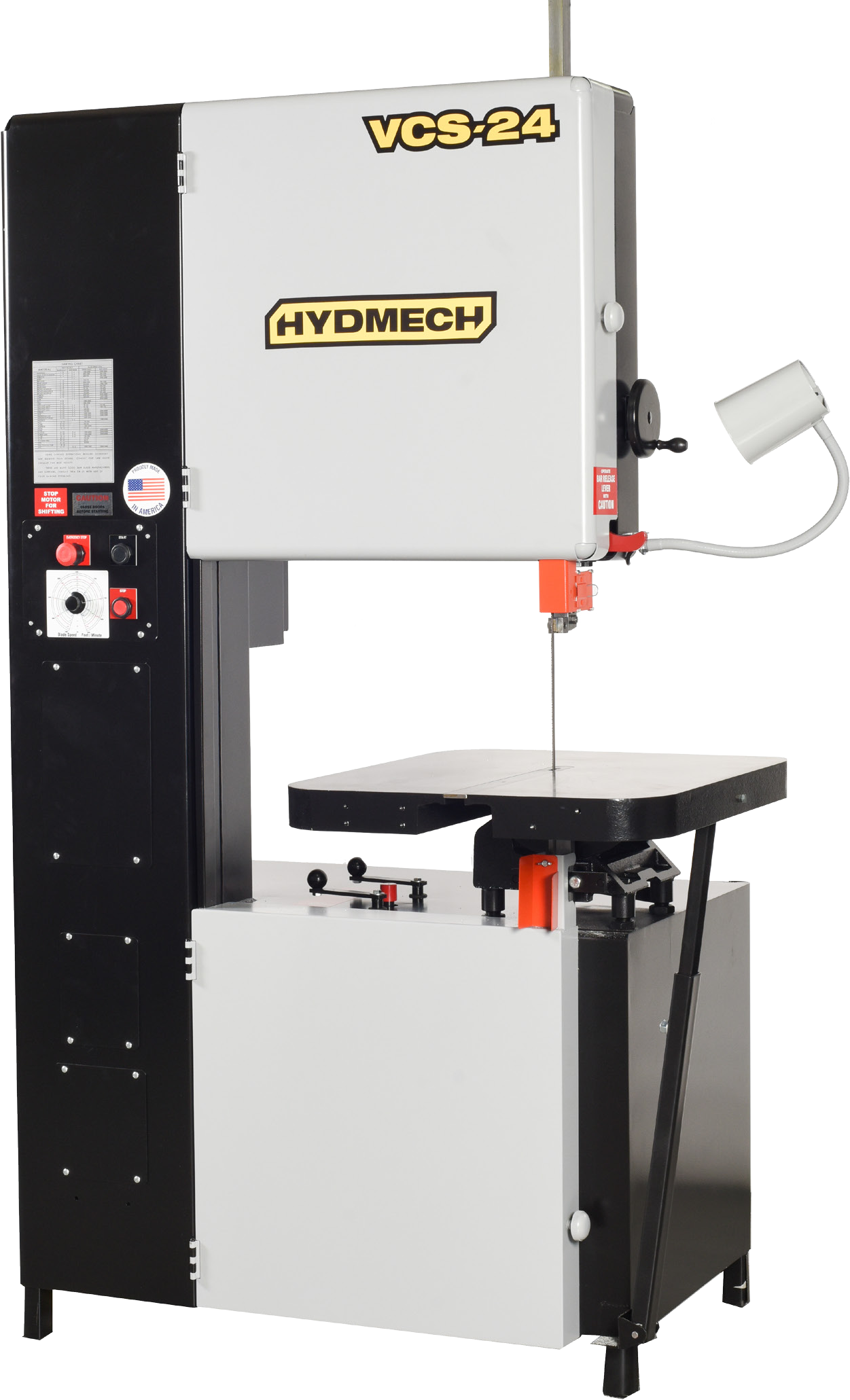

VCS-24 – Vertical Contour Band Saw
| Capacity Throat – band to column |
24″ | 609 mm |
| Maximum Work Height |
12″ | 305 mm |
| Blade Dimensions | 1/18” to 1” x 179” | 1.40 mm to 25.4 mm x 4,546 mm |
| Blade Drive | 3 HP VFD | 2.24 kW VFD |
| Blade Speed | 40-5,000 sfm | 12-1524 m/min |
| Table Dimensions |
24” x 28” | 609 mm x 711 mm |
| Machine Weight | 1,670 lbs | 757 kg |
| Machine Dimensions | 51” W 43” L 83” H |
1,295 mm W 1,092 mm L 2,108 mm H |
VCS-36 – Vertical Contour Band Saw
| Capacity Throat – band to column |
36″ | 914 mm |
| Maximum Work Height |
12″ | 305 mm |
| Blade Dimensions | 1/18” to 1” x 179” | 1.40 mm to 25.4 mm x 4,546 mm |
| Blade Drive | 3 HP VFD | 2.24 kW VFD |
| Blade Speed | 40-5,000 sfm | 12-1524 m/min |
| Table Dimensions |
24” x 28” | 609 mm x 711 mm |
| Machine Weight | 1,740 lbs | 789 kg |
| Machine Dimensions | 76” W 43” L 75” H |
1,930 mm W 1,092 mm L 1,905 mm H |
VCS-36HD – Vertical Contour Band Saw
| Capacity Throat – band to column |
36″ | 914 mm |
| Maximum Work Height |
20″ | 508 mm |
| Blade Dimensions | 1/18” to 1” x 246” | 1.40 mm to 25.4 mm x 6,248 mm |
| Blade Drive | 15 HP VFD | 11 kW VFD |
| Blade Speed | 20-15,000 sfm | 6-4572 m/min |
| Table Dimensions |
36” x 36” | 914 mm x 914 mm |
| Machine Weight | 5,000 lbs | 2,267 kg |
| Machine Dimensions | 77” W 64” L 108” H |
1,955 mm W 1,625 mm L 2,743 mm H |
- Blade speed indicatorWork light

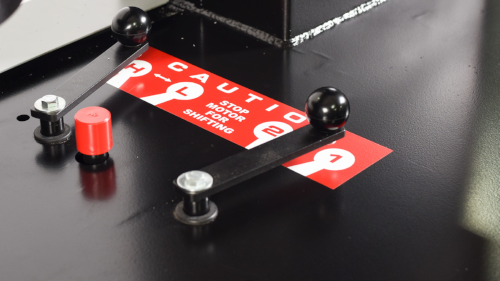

- Quad range transmission
- Inverter drive control
- Dynamic braking
- Wheels with crowned rubber tires

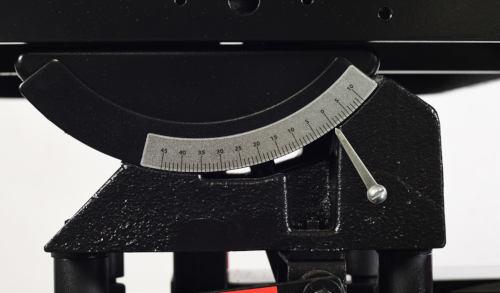

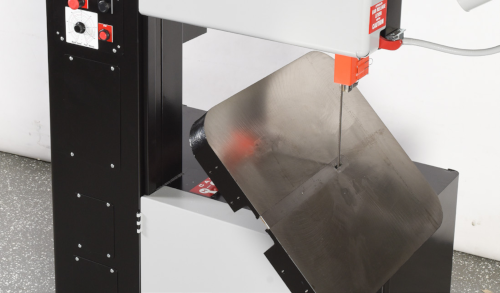

- Tilting cast table – 10° L / 45° R
- One set of single piece guide blocks
- One set of steel guide inserts for 3/8”, and 1/2” blades
- Fused disconnect
- Air blower
- Rip fence
- Air/Hyd power feed
- Mitering attachment
- Band mist lubricator
- Portable blade welder w/grinder
- Stand and casters for welder
- Extended work height
