BAND SAW
SEMI-AUTOMATIC VERTICAL

V-20

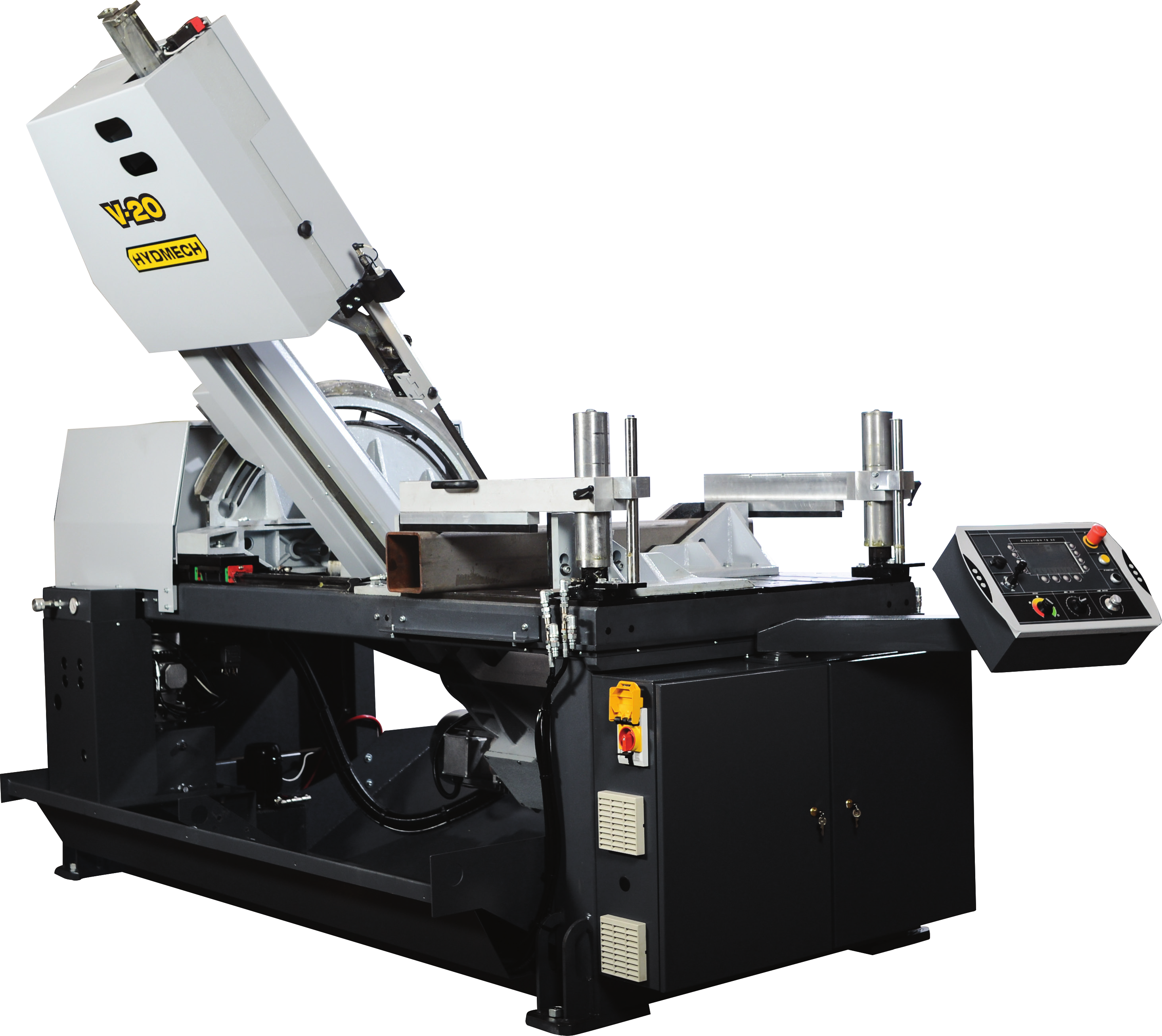

The V-20 is a semi-automatic vertical band saw with the ability to miter from 60° left to 60° right.

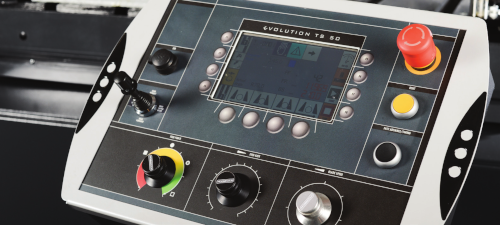

Its standard 4-degree forward approach angle provides increased efficiency in cutting of structural materials. Conveniently located on an articulating console on the front of the machine. The NEW WINDOWS 5.0 Touch Screen NC controller operates the Semi-Automatic cycle and allows for Manual operation as well.  A wide variety of languages can be chosen for message screen display.

ProMaxMachinerie Call for Price

Save energy!  The V-20 on demand hydraulics combined with a constant torque electric feed control, uses 2/3 less energy than any other band saw on the market!

The double miter angle operation has an angle “Go To” function, which allows the operator to enter 2 desired angles up to 60 degrees and have the machine.

Featuring a 25″H x 20″W capacity, 10 HP VFD motor, and 1 1/2″ blade, the V-20 is a reliable choice for all your vertical metal cutting applications

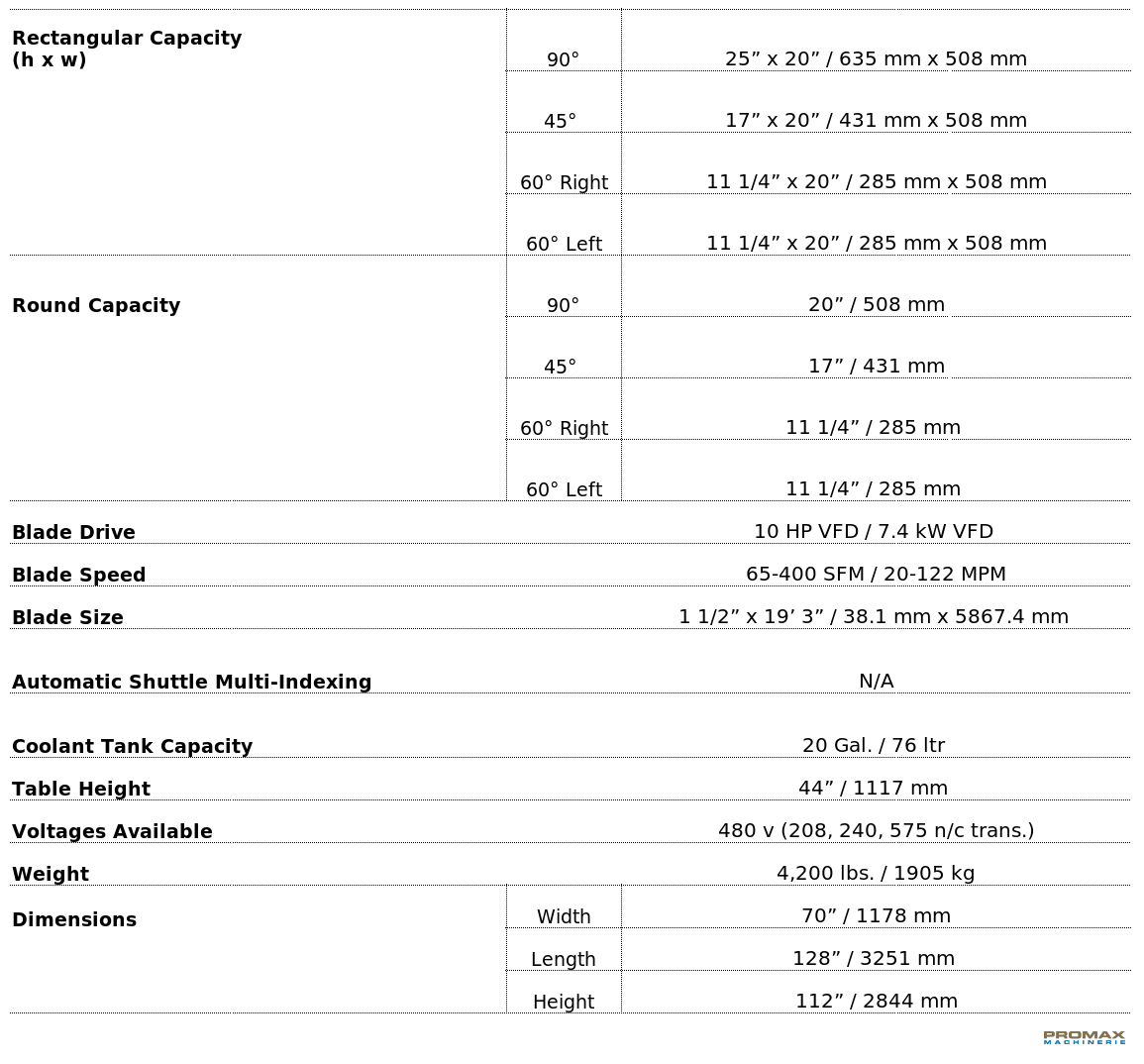

V-20 Technical Specification

Standard-features

  • 4° canted head allows for efficient cutting and improved blade life
  • Cast iron, torsion free saw head provides durability, stiffness, and absorbs vibrations
  • On-demand hydraulics save energy
  • High efficiency, constant torque electric ball screw feed system
  • Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right
  • Semi-automatic touch screen NC controller

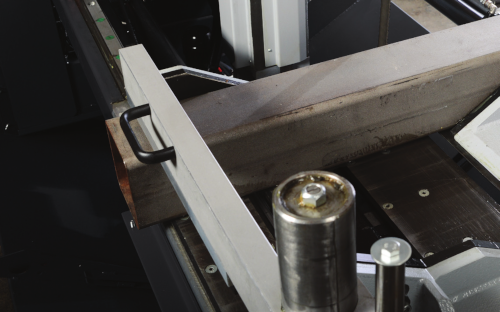

  • Two full stroking hydraulic vises
  • Electronic ball screw powered, guide arm
  • 10 HP VFD. True direct blade drive – no belts/pulleys
  • Cast iron band wheels
  • Replaceable blade brush
  • Robust steel base
  • Variable vise pressure

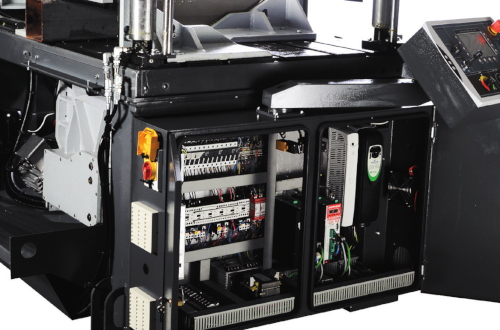

  • Easy access electrical panel and hydraulics
  • Electric chip conveyor
  • Blade breakage switch
  • Electronic band tensioning provides consistent, automatic blade tension
  • Replaceable carbide guide inserts
  • 2 HP hydraulic pump provides system pressure
  • Safety door interlocks
  • Flood coolant with wash down hose
  • Laser light
  • Work light



Options

  • Hydraulic overhead bundling
  • Mist lubrication
  • Tall square vise inserts
  • Pop up feed roller and table
  • Idler conveyors
  • Powered conveyors

HYDMECH V-20 Conveyor Bridge
