V-18APC-60

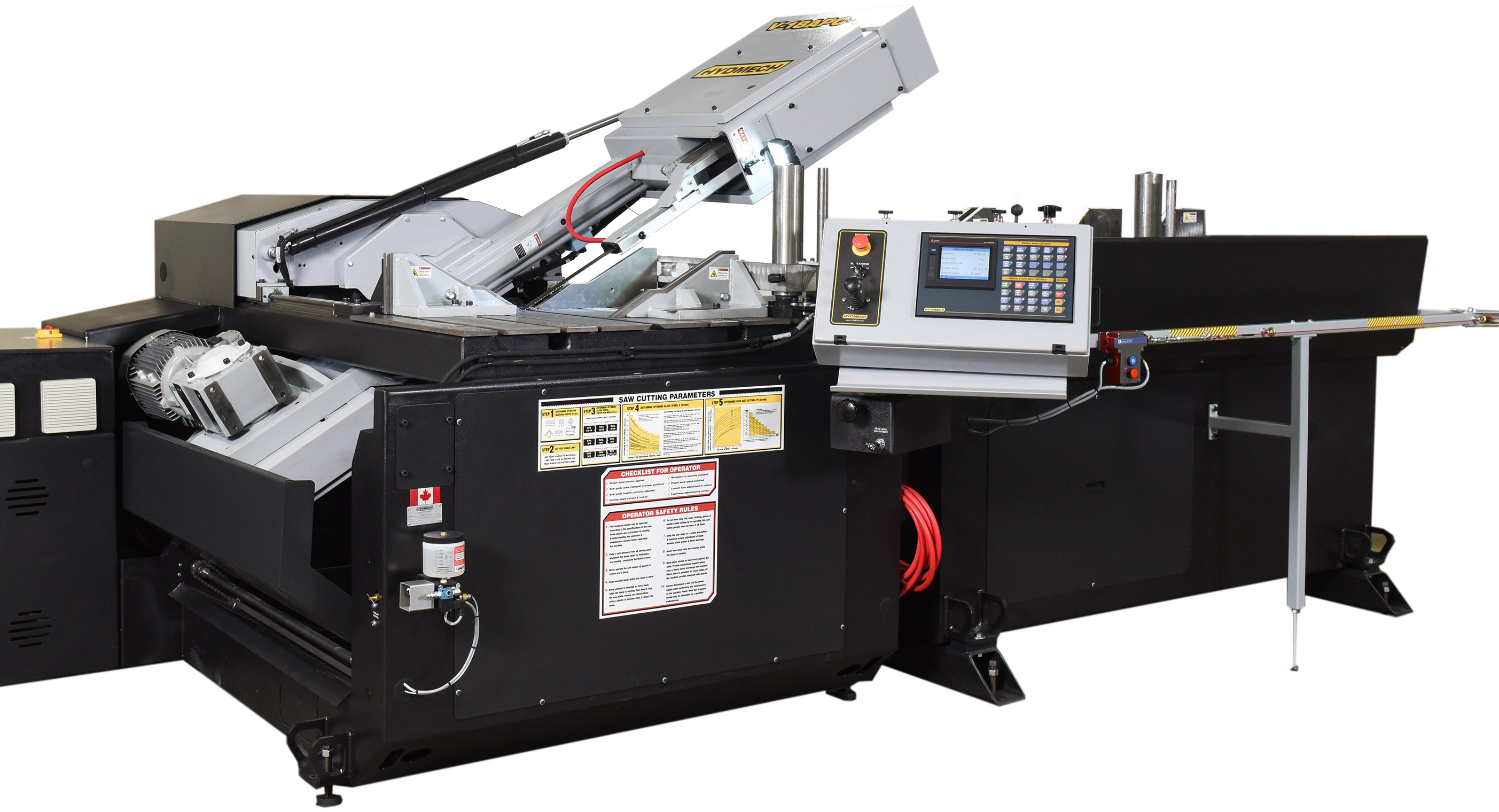

The V-18APC-60 is an automatic vertical band saw with the ability to miter from 60° left to 60° right.
The V-18APC is fast, with its high speed shuttle feed indexing up to 40″ in a single movement. A 2 HP driven hydraulic pump supplies system pressure through 3-position directional valves controlling all vising, head swing, head advance/retract, blade tension, guide arm, and shuttle movement. Its PLC control features storage of up to 1000 jobs with the ability to run 5 in queue.

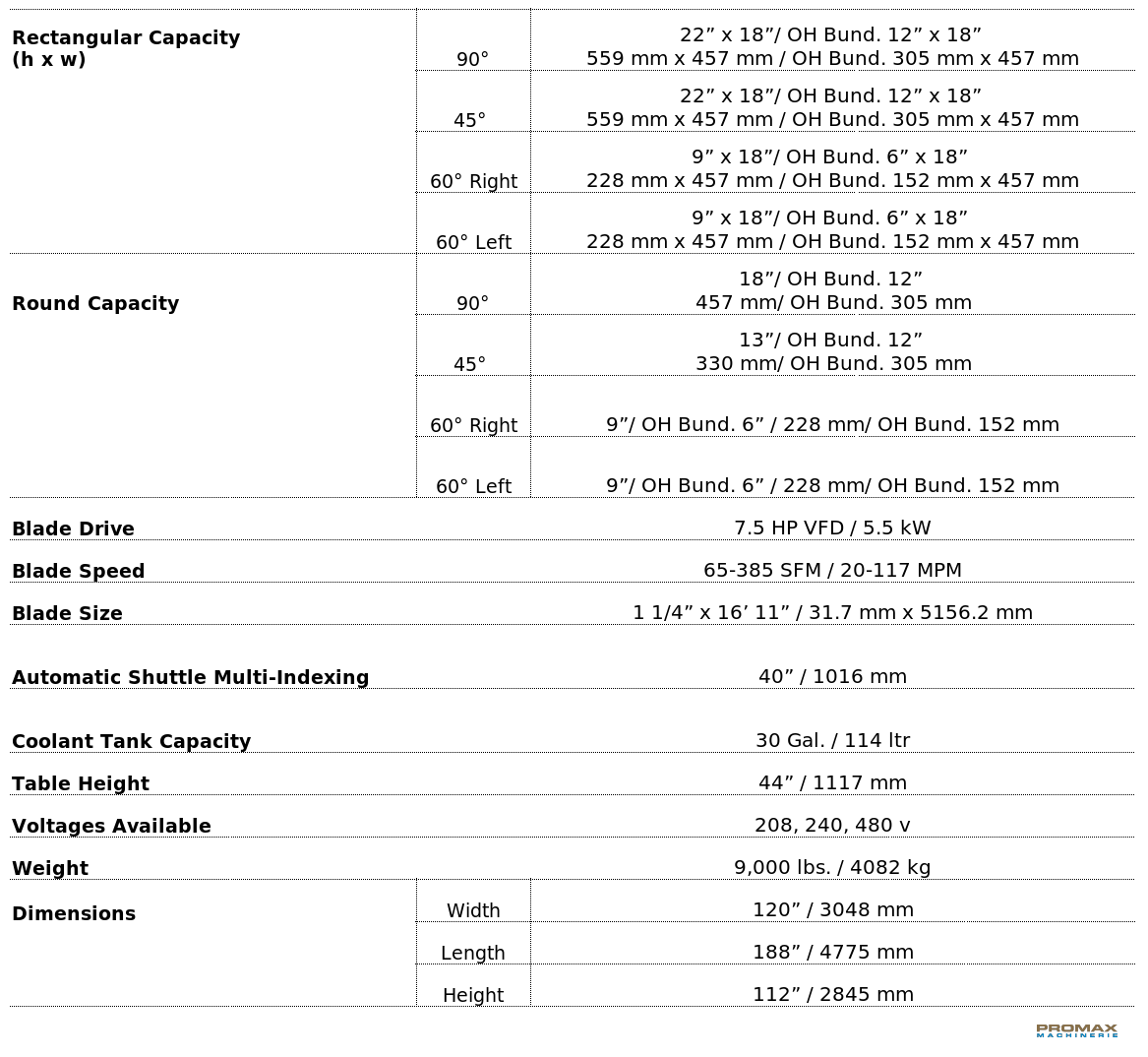

Featuring a 18″W x 22″H capacity, 7.5 HP motor, and 1 1/4″ blade, the V-18APC is a reliable choice for all your vertical metal cutting applications.
- Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right
- Three full stroking hydraulic vises and third squaring vise
- Automatic multi-indexing up to 40” in a single stroke.
- Powered movable guide arm

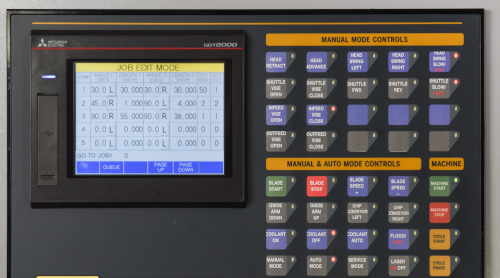

- Automatic PLC control programmable up to 1000 jobs with 5 in queue.
- Drag chain chip conveyor
- Hydraulic overhead bundling
- 5 HP VFD. True direct blade drive – no belts/pulleys
- Hydraulic positive down feed
- Blade chamber separates material from cut part
- Out of stock switch
- Cast iron band wheels
- Replaceable blade brush
- Robust steel base
- Easy access electrical panel and hydraulics
- Blade breakage switch
- You choose left or right side infeed
- Hydraulic band tensioning with digital readout
- Replaceable carbide guide inserts
- 2 HP hydraulic pump provides system pressure
- Safety door interlocks
- Flood coolant with wash down hose

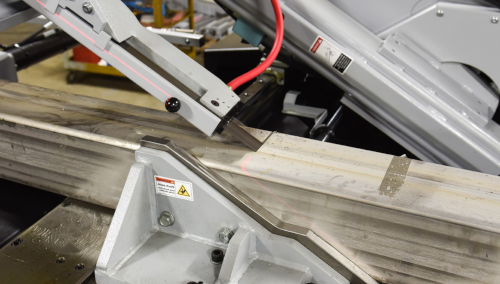

- Laser light and Work light
- Variable vise pressure
- Chip bucket
- Mist lubrication
- Pop-up lift roller
- Tall square vise inserts
- Hydraulic chip conveyor
- Idler conveyors
- Powered conveyors
