SCIE À RUBAN
AUTOMATIC SCISSOR STYLE

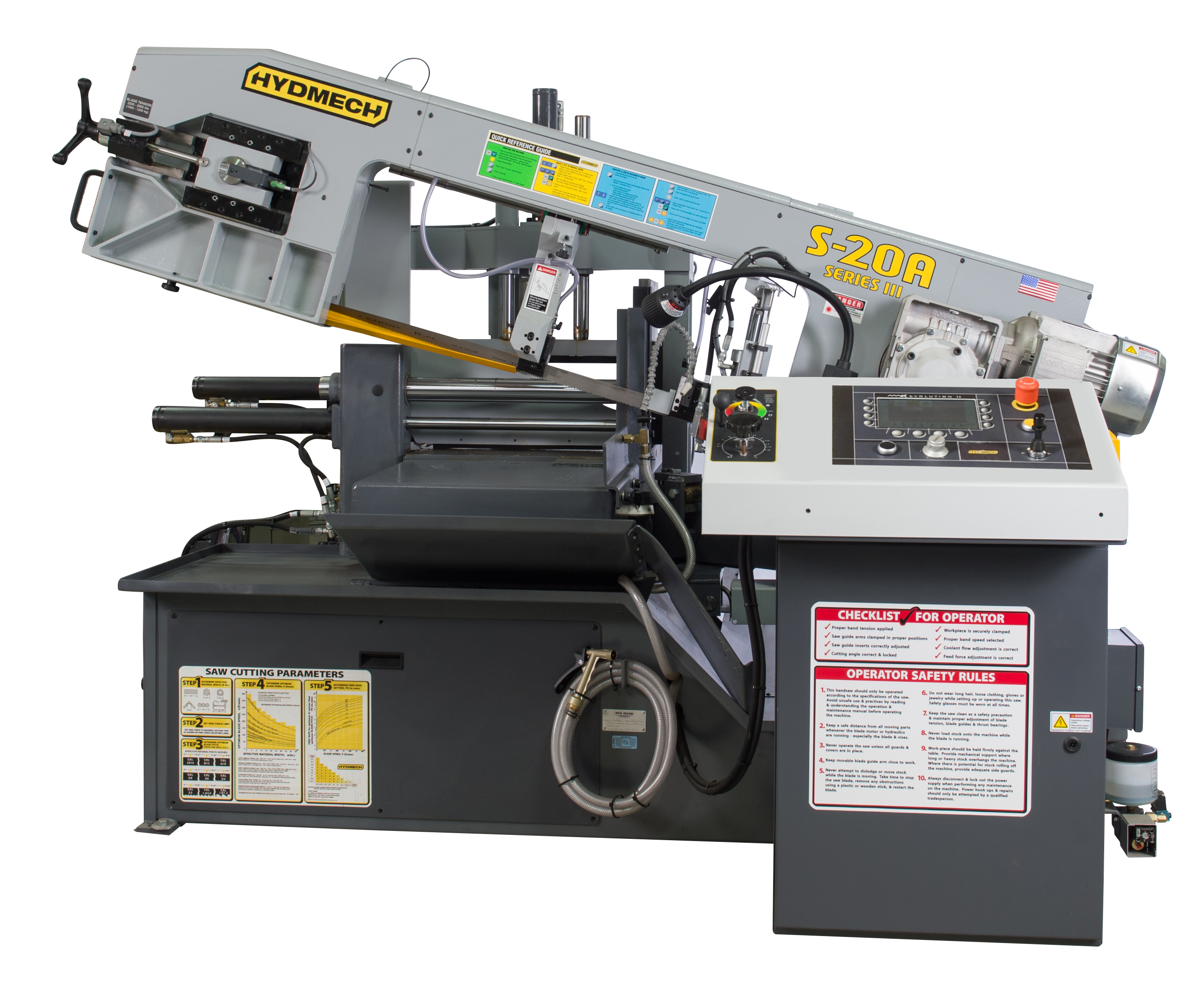

S-20A

The S-20A, automatic scissor style band saw features a swing head design and provides exceptional miter cutting capability for light to medium duty applications.

Featuring a 13″H x 18″W capacity at 90°, 3 HP motor, and 1″ blade, the S-20A is a versatile, automatic scissor style band saw ideal for use in tight working spaces.

ProMaxMachinerie Call for Price

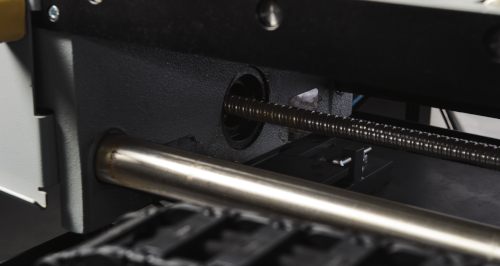

BALL SCREW FEED SYSTEM

Improve cycle time! Automatic material indexing up to 27” in a single stroke. The shuttle vise is powered by a ball screw and stepper motor for fast, accurate indexing.

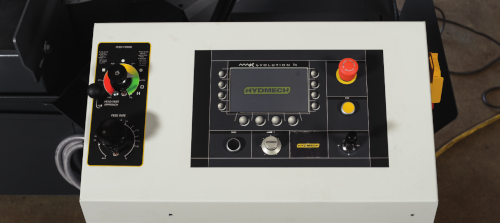

AUTOMATIC PLC CONTROL

Automatic mode: displays blade speed, blade tension part length, quantity required, and piece count, job run time, total blade run time Machine will shut down when the required number of pieces have been cut.

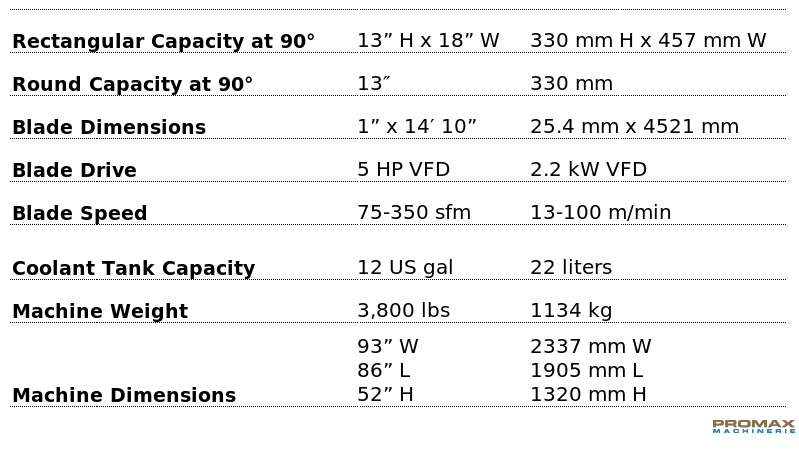

S-20A Technical Specification

Standard-features

  • Easy swing, heavy duty cast iron saw head
  • Cast iron shuttle features automatic multi-indexingup to 27” in a single stroke. Powered by ball screw and stepper motor.
  • 5 HP VFD. True direct blade drive – no belts/pulleys
  • On-demand hydraulics save energy
  • Blade chamber separates material from cut part
  • Cast iron band wheels
  • Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue
  • Replaceable blade brush
  • Robust steel base
  • Easy to read angle scale with angle locking mechanism
  • Cast iron guide arms mounted on linear rails is adjustable for proper spacing.

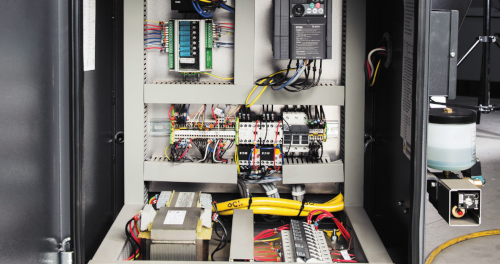

  • Easy access electrical panel
  • Out of stock switch
  • Mechanical band tensioning with digital readout
  • Hydraulic positive down feed
  • Replaceable carbide guide inserts
  • Safety door interlocks
  • Flood coolant with wash down hose
  • Laser light & work light



Options

  • Full capacity hydraulic overhead bundling
  • Mist lubrication
  • Variable vise pressure
  • Idler and powered conveyors

HYDMECH S-20A AUTOMATIC HORIZONTAL PIVOT BAND SAW
