S-20

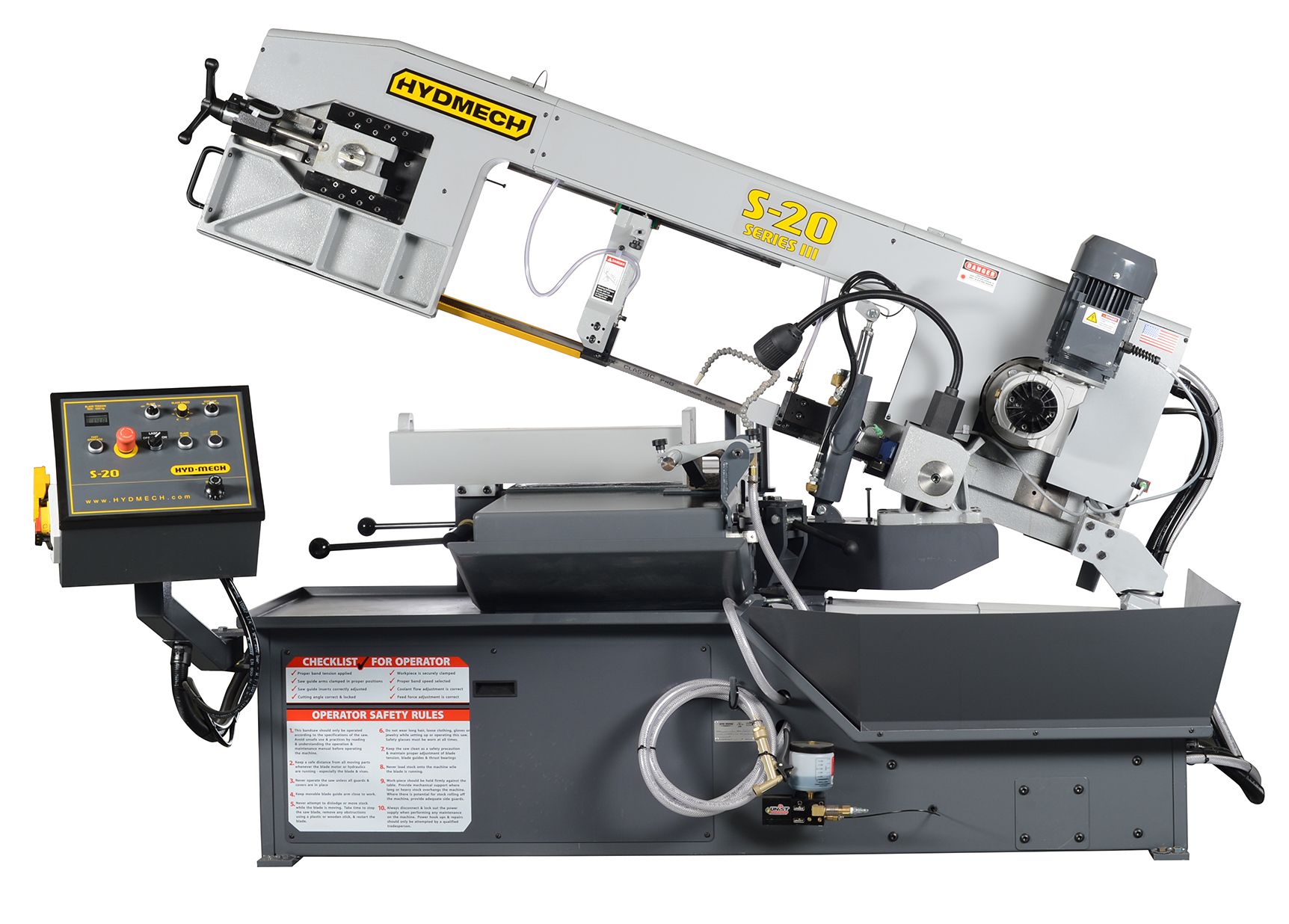

The S-20 manual band saw features a swing head design and provides exceptional miter cutting capability for light to medium duty applications.

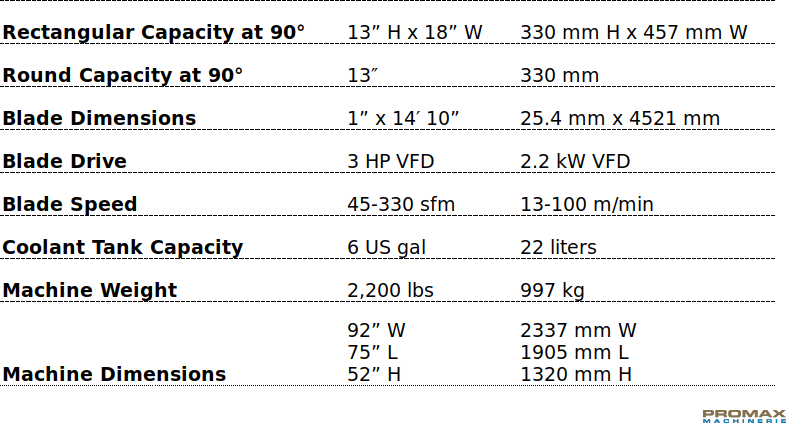

Featuring a 13″H x 18″W capacity at 90°, 3 HP motor, and 1″ blade, the S-20 is a versatile machine ideal for use in tight working spaces.

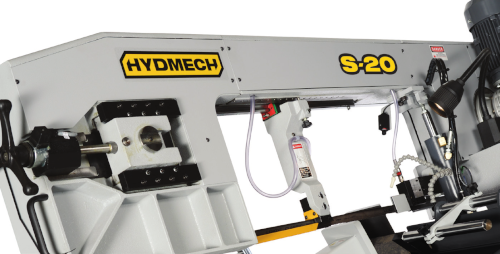

- Easy swing, heavy duty cast iron saw head

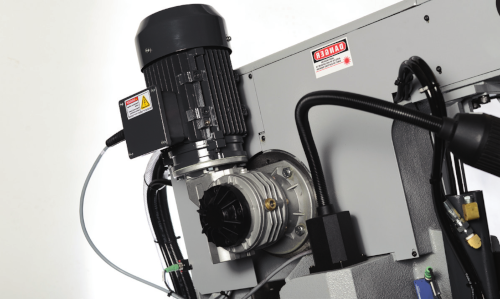

- 3 HP true direct blade drive – no belts/pulleys
- 36” material in-feed roller table and 19” out feed table
- Heavy duty sliding vise jaw
- Mechanical band tensioning with digital readout
- Cast iron band wheels

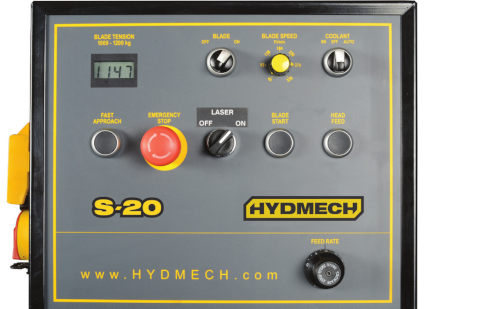

- Swing away control
- Replaceable blade brush
- Robust steel base
- Easy to read angle scale with angle locking mechanism
- Cast iron guide arms. Idler side guide arm is adjustable and supported by linear rail.
- Gravity head feed
- Replaceable carbide guide inserts
- Safety door interlocks
- Flood coolant with wash down hose
- Laser light
- Work ligh
- Mist lubrication
- Work stop
- Single Phase – 220 v
- Idler conveyors
HYDMECH S-20 MANUAL HORIZONTAL PIVOT BAND SAW
