COLD SAW
MANUAL PIVOT ARM

P350

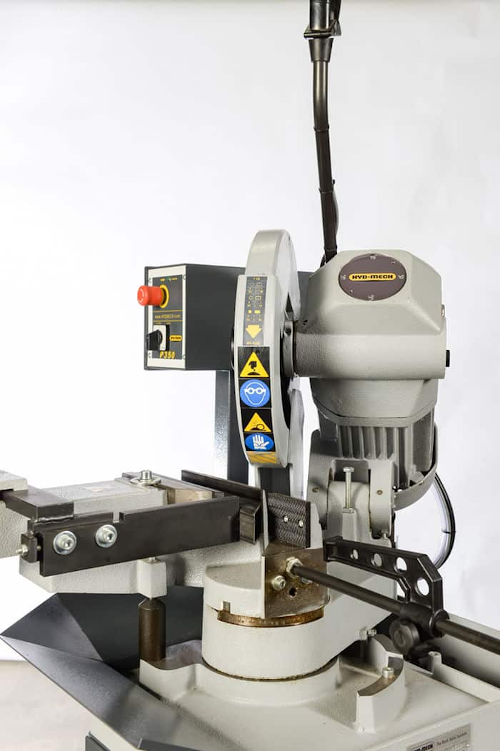

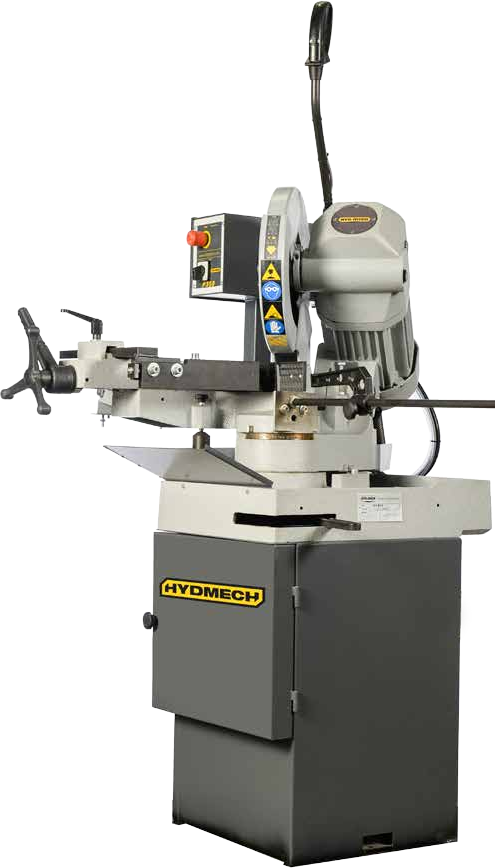

The P350 is a manual pivot arm cold saw ideal for use in small job shops. The P350 miters from 45° left to 45° right.

ProMaxMachinerie Call for Price



Featuring a 4 1/2″ round hollow capacity, 1.5/3 HP motor, and 14″ blade, the P350 is the ideal choice for quick, clean, accurate metal cutting.

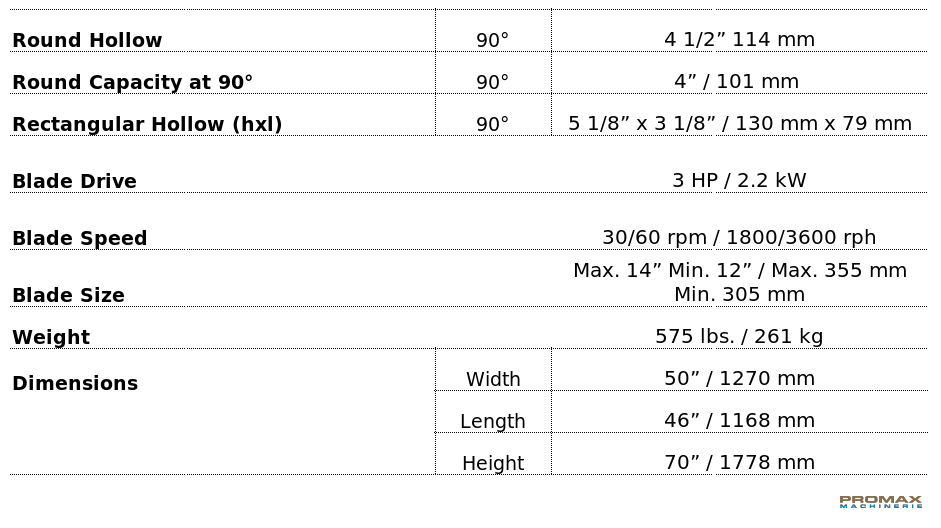

P-350 Technical Specification

Standard-features

  • Manually operated
  • Saw head movement by means of control handle with safety spring loaded trigger switch to start and stop blade

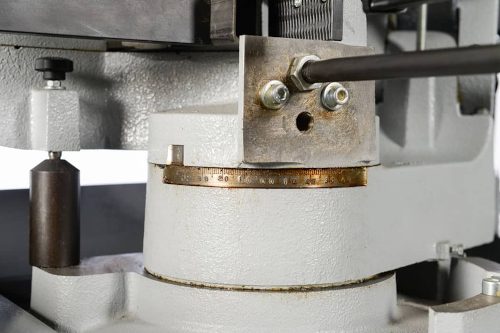

  • Robust sawing head miters 45° left and 45° right
  • Includes saw base
  • Two blade speed of 30 and 60 rpm
  • Movement of both head and vise to permit slotting or lengthwise cuts

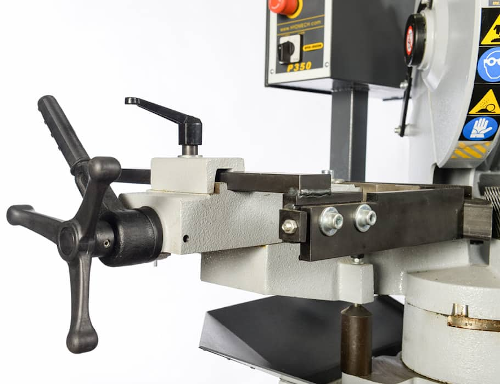

  • Vise quick clamp and release lever
  • Adjustable manual vise with anti-burr clamp, clamps both sides of the cut
  • Material work stop rod for multiple cuts of the same length Flood coolant with electrical coolant pump
  • One blade included



Options

  • “Flip over” material stops with 60” ruler
  • R2 ruler extensions for out feed roller tables
  • Material stop with ruler
  • K40 5’ roller table
  • Roller table support stands (extra legs)
  • Roller table adapter – required if ordering roller table for out feed
  • HSS Oxide Coated Blade
