H-40-80

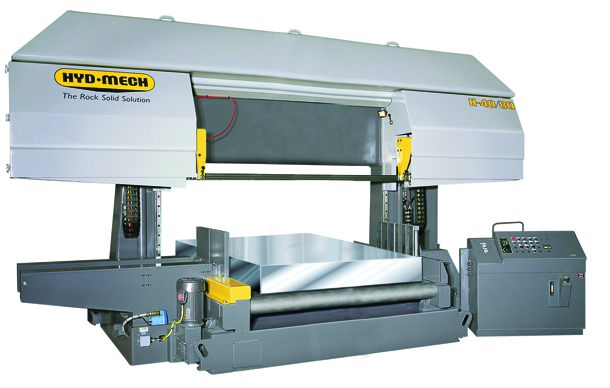

The H-40/80 is a horizontal band saw providing accurate 90° metal cutting for heavy-duty applications.
The H-40/80 has a workload capacity of 50,000 lbs. A 5 HP driven hydraulic pump supplies system pressure through 3-position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.
Its PLC control digitally displays blade speed, feed rate, head up limit position, and cut elapsed time, and time remaining.
Featuring a 40″H x 80″W capacity, 20 HP motor, and 3″ blade, the H-40/80 is a reliable choice for all your heavy-duty horizontal metal cutting applications.
- Dual pots horizontal band saws
- One piece design – no alignment necessary
- 8’ of powered rollers built into the bed of the machine
- Cast iron guide arms.
- 20 HP VFD. True direct blade drive – no belts/pulleys
- Full capacity hydraulic vises
- Cast iron band wheels
- User friendly operator control
- Replaceable blade brush
- Robust steel base
- Automatic chip removal auger
- Easy access electrical panel and hydraulics
- Blade breakage switch
- Hydraulic band tensioning with digital readout
- 5 HP hydraulic pump provides system pressure
- Replaceable carbide guide inserts
- Hardened, replaceable wear plates
- Safety door interlocks
- Flood coolant with wash down hose
- Work light
- Laser light
- Outboard vise
- Powered conveyors
- Chip bucket with pump
- Hydraulic overhead bundling
- Mist lubrication
- Variable vise pressure
- Out feed vise
- Right side infeed shuttle
- 10’ shuttle infeed
- Idler conveyors
- Powered conveyors
