BAND SAW
HORIZONTAL

H-40-60

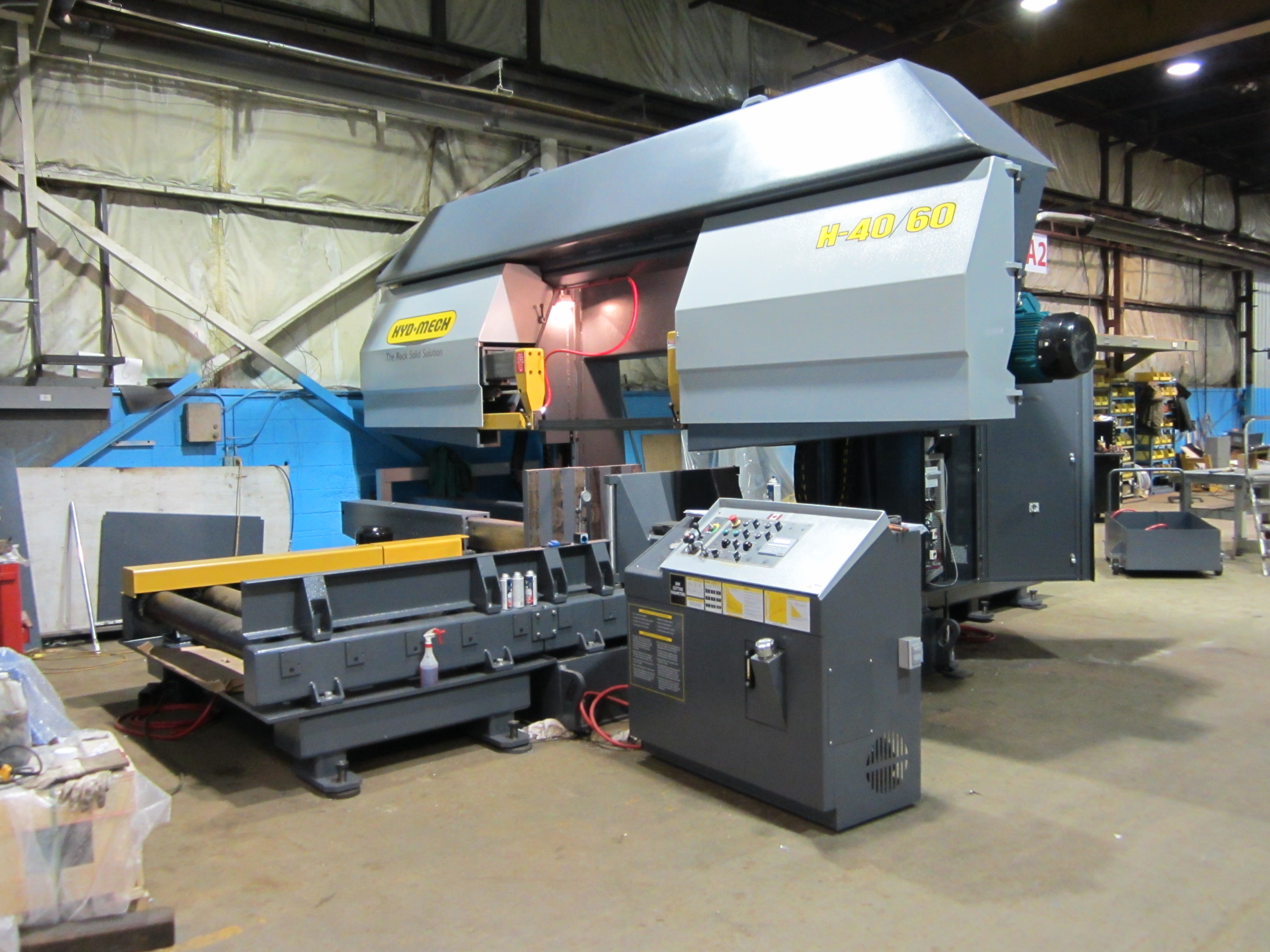

The H-40/60 is a horizontal band saw providing accurate 90° metal cutting for heavy-duty applications.

The H-40/60 has a workload capacity of 50,000 lbs. A 5 HP driven hydraulic pump supplies system pressure through 3-position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.

ProMaxMachinerie Call for Price

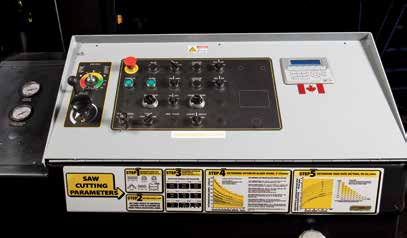

Its PLC control digitally displays blade speed, feed rate, head up limit position, and cut elapsed time, and time remaining.

Featuring a 40″H x 60″W capacity, 20 HP motor, and 3″ blade, the H-40/60 is a reliable choice for all your heavy-duty horizontal metal cutting applications.

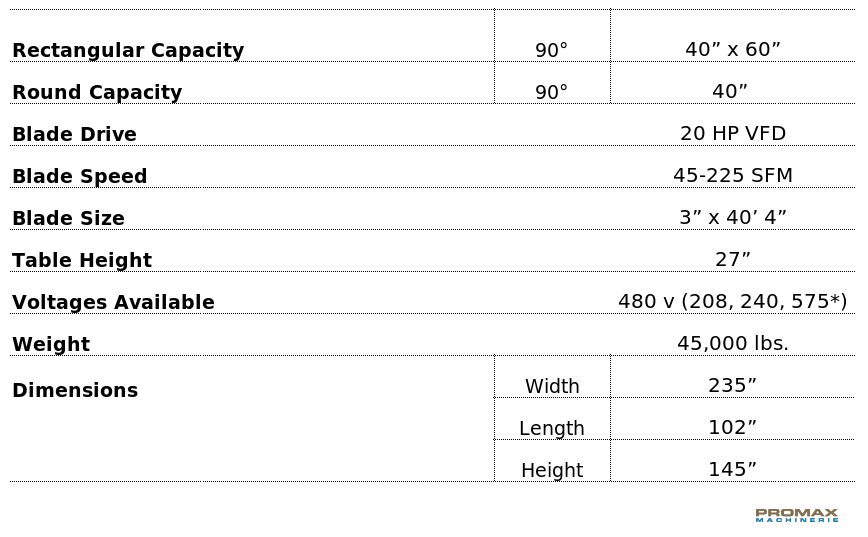

H-40/60 Technical Specification

Standard-features

  • Dual pots horizontal band saws
  • One piece design – no alignment necessary

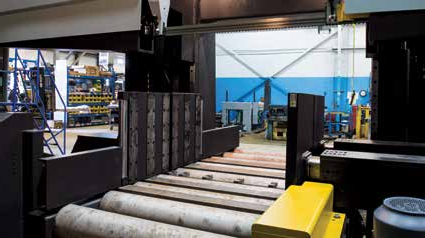

  • 8’ of powered rollers built into the bed of the machine
  • Cast iron guide arms.
  • 20 HP VFD. True direct blade drive – no belts/pulleys

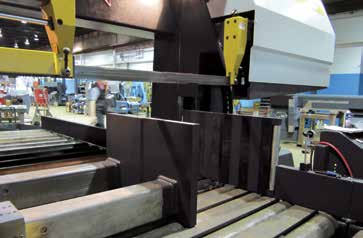

  • Full capacity hydraulic vises
  • Cast iron band wheels
  • User friendly operator control
  • Replaceable blade brush
  • Robust steel base
  • Automatic chip removal auger
  • Easy access electrical panel and hydraulics
  • Blade breakage switch
  • Hydraulic band tensioning with digital readout
  • 5 HP hydraulic pump provides system pressure
  • Replaceable carbide guide inserts
  • Hardened, replaceable wear plates
  • Safety door interlocks
  • Flood coolant with wash down hose
  • Work light
  • Laser light

Options

  • Outboard vise
  • Powered conveyors
  • Chip bucket with pump
  • Hydraulic overhead bundling
  • Mist lubrication
  • Variable vise pressure
  • Out feed vise
  • Right side infeed shuttle
  • 10’ shuttle infeed
  • Idler conveyors
  • Powered conveyors
