H-32A
The H-32A is an automatic horizontal band saw providing accurate 90° metal cutting for heavy-duty applications.
The H-32A is fast, with its high speed shuttle feed indexing up to 32″ in a single movement. A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.
HYDMECH’s direct down feed system provides easy adjustment of both head feed rate and cutting pressure.
Featuring a 32″ x 32″ capacity, 20 HP motor, and 2 5/8″ blade, the H-32A is a reliable choice for all your heavy-duty horizontal metal cutting applications.
- One piece design – no alignment necessary
- Spilt front vise allows for short remnant length
- Cast iron shuttle features automatic multi-indexing up to 32” in a single stroke with automatic kerf compensation.

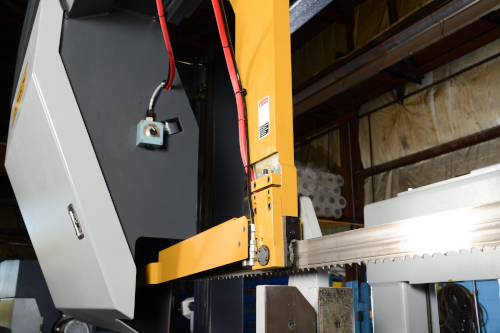

- Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing
- Hydraulic positive down feed
- Cast iron band wheels
- Automatic chip removal auger
- 20 HP VFD. True direct blade drive
- Full capacity, full stroking hydraulic vises
- High resolution feed rate valve allows for constant feed rate when cutting special alloys
- Blade chamber separates material from cut part
- Automatic PLC control programmable up to 99 jobs with 5 in queue.

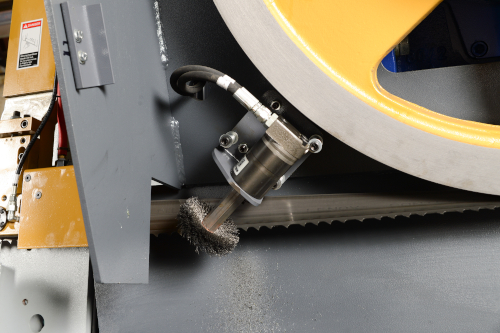

- Replaceable blade brush
- Robust steel base
- Blade breakage switch
- Easy access electrical panel and hydraulics
- Hydraulic band tensioning with digital readout
- 5 HP hydraulic pump system pressure
- Hydraulic carbide guide tensioning
- Hardened, replaceable wear plates
- Safety door interlocks

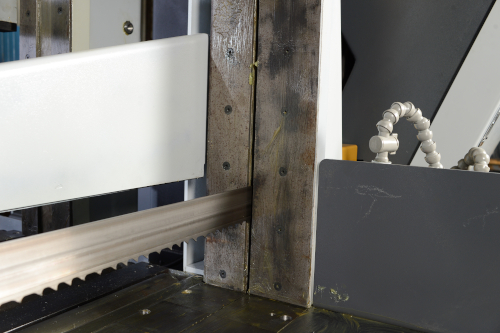

- Flood coolant with wash down hose
- Laser light & work light
- Full capacity hydraulic overhead bundling
- Variable vise pressure
- 6 degree canted head
- Blade deviation
- Mist lubrication
- Out of stock switch
- Outboard vise
- Outboard vise/w bund.
- Pedestal control
- Roller discharge table
- Vertical alignment rollers
- Idler conveyors
- Powered conveyors
HYDMECH H-32A AUTOMATIC HORIZONTAL BAND SAW
