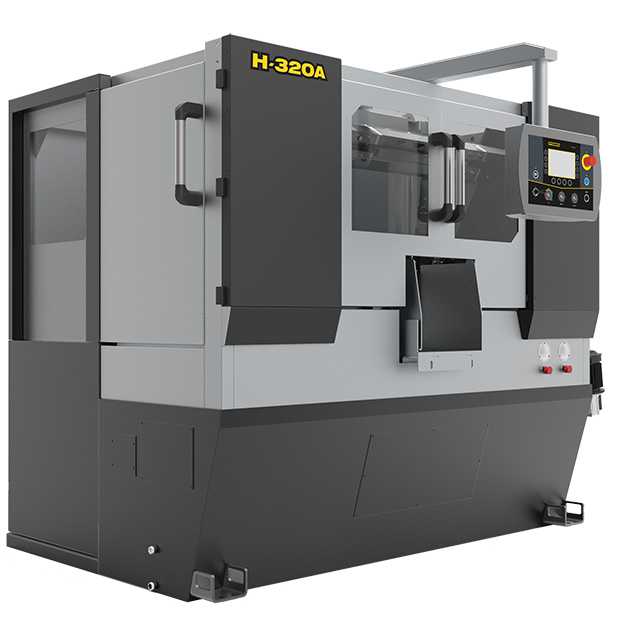

H-320A
The brand new H-320A is an automatic horizontal band saw providing accurate 90° metal cutting for medium to heavy-duty applications. A PLC controller stores up to 100 jobs with 20 in queue.

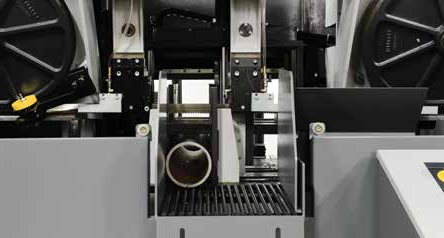

A heavy duty shuttle vise powered by a ball screw and stepper motor provides material indexing up to 23” in a single stroke with multi-index capability. Its standard split front vise delivers a short material remnant length of 1.8″, reducing material waste.
A steel guide arm is mechanically connected to front vise movable jaw provides proper guide arm to material spacing at all times.
EASY ACCESS HYDRAULICS
A 1.7 HP hydraulic pump supplies system pressure which controls all vises and head up/down movement, Easy access for minimal downtime.
BALL SCREW BAR FEED SYSTEM
Improve cycle time! Automatic material indexing up to 23” in a single stroke. The shuttle vise is powered by a ball screw and stepper motor for fast, accurate indexing.

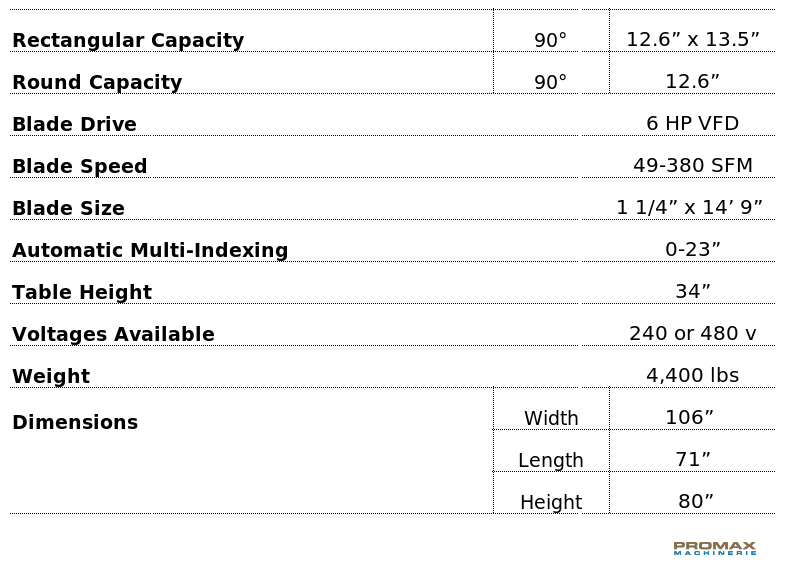

Featuring a 12.5″ x 12.5″ capacity, 6 HP VFD motor, and 1 1/4″ blade, the H-320A is a reliable choice for your horizontal metal cutting applications.
- Heavy duty cast iron saw head
- Spilt front vise
- Fabricated shuttle features automatic multi-indexing up to 23” in a single stroke. Powered by ball screw and stepper motor.
- On-demand hydraulics save energy
- Steel guide arms mounted on linear rails. Auto adjustable guide arm for proper spacing.
- 6 HP VFD. True direct blade drive – no belts/pulleys
- Full capacity, full stroking hydraulic vises
- Hydraulic positive down feed
- Blade chamber separates material from cut part
- Cast iron band wheels

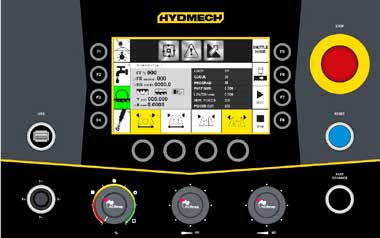

- Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue.
- Replaceable blade brush
- Robust steel base
- Automatic chip removal auger
- Easy access electrical panel and hydraulics
- Blade deviation monitor
- Designed for safety with saw-in-a-box style
- Out of stock switch
- Mechanical band tensioning with digital readout
- Replaceable carbide guide inserts
- Safety door interlocks RFID technology
- Flood coolant with wash down hose
- Laser light & LED work light
- Reversible chip auger
- Mist lubrication
- Variable vise pressure
- Vertical rollers
- Blade deviation monitor
- Idler & powered conveyors
