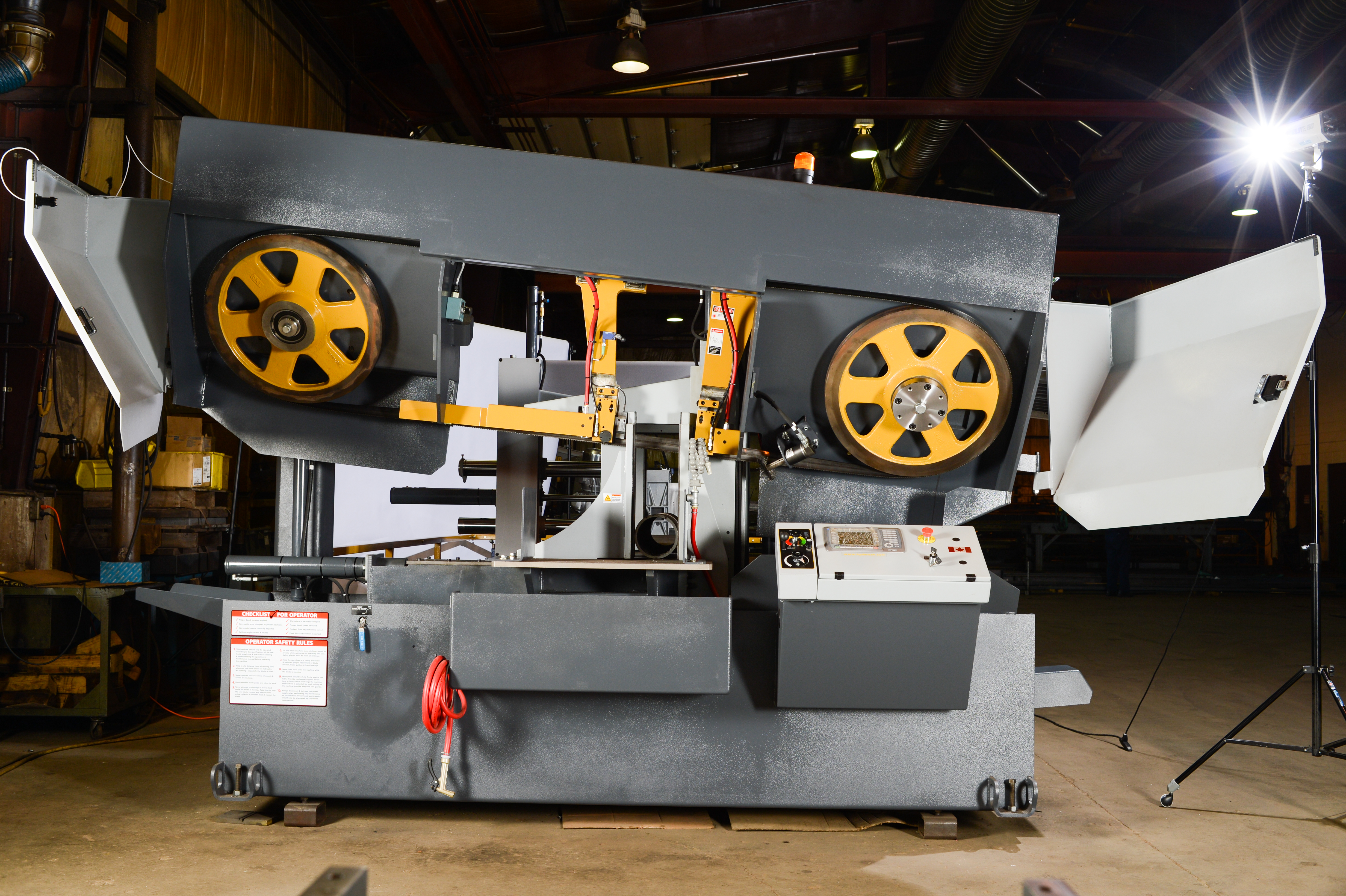

H-28A-120
The H-28A-120 is an automatic horizontal long bar feed band saw providing accurate 90° metal cutting for heavy-duty applications.
The H-28A-120 is fast, with its high speed shuttle feed indexing up to 120″ in a single movement with weight capacities up to 15,000 lbs. A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.
Hyd-Mechs direct down feed system provides easy adjustment of both head feed rate and cutting pressure.
Featuring a 120″ bar feed, 24″ x 28″ capacity, 10 HP motor, and 2″ blade, the H-28A-120 is a reliable choice for all your heavy-duty horizontal metal cutting applications.
| Rectangular Capacity at 90° | 28” H x 28” W |
| Blade Size | 2″ x 25’ |
| Blade Drive | 10 HP |
| Operation | Automatic |
The H-28A-120 is an automatic horizontal long bar feed band saw providing accurate 90° metal cutting for heavy-duty applications.
- Variable vise pressure
- Blade deviation
- Squaring vise
- Mist lubrication
- Out of stock switch

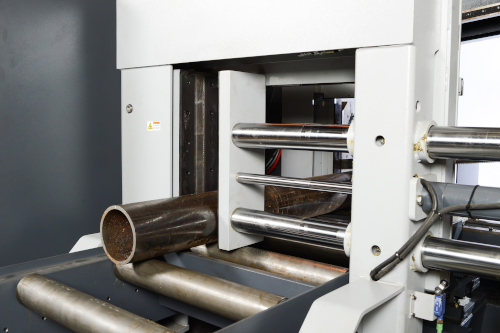

- Outboard vise
- Outboard vise/w bund.
- Pedestal control
- Roller discharge table
- Vertical alignment rollers
- Idler conveyors
- Powered conveyors
HYDMECH H-28A-120 AUTOMATIC, HORIZONTAL
LONG BAR FEED BAND SAWW
