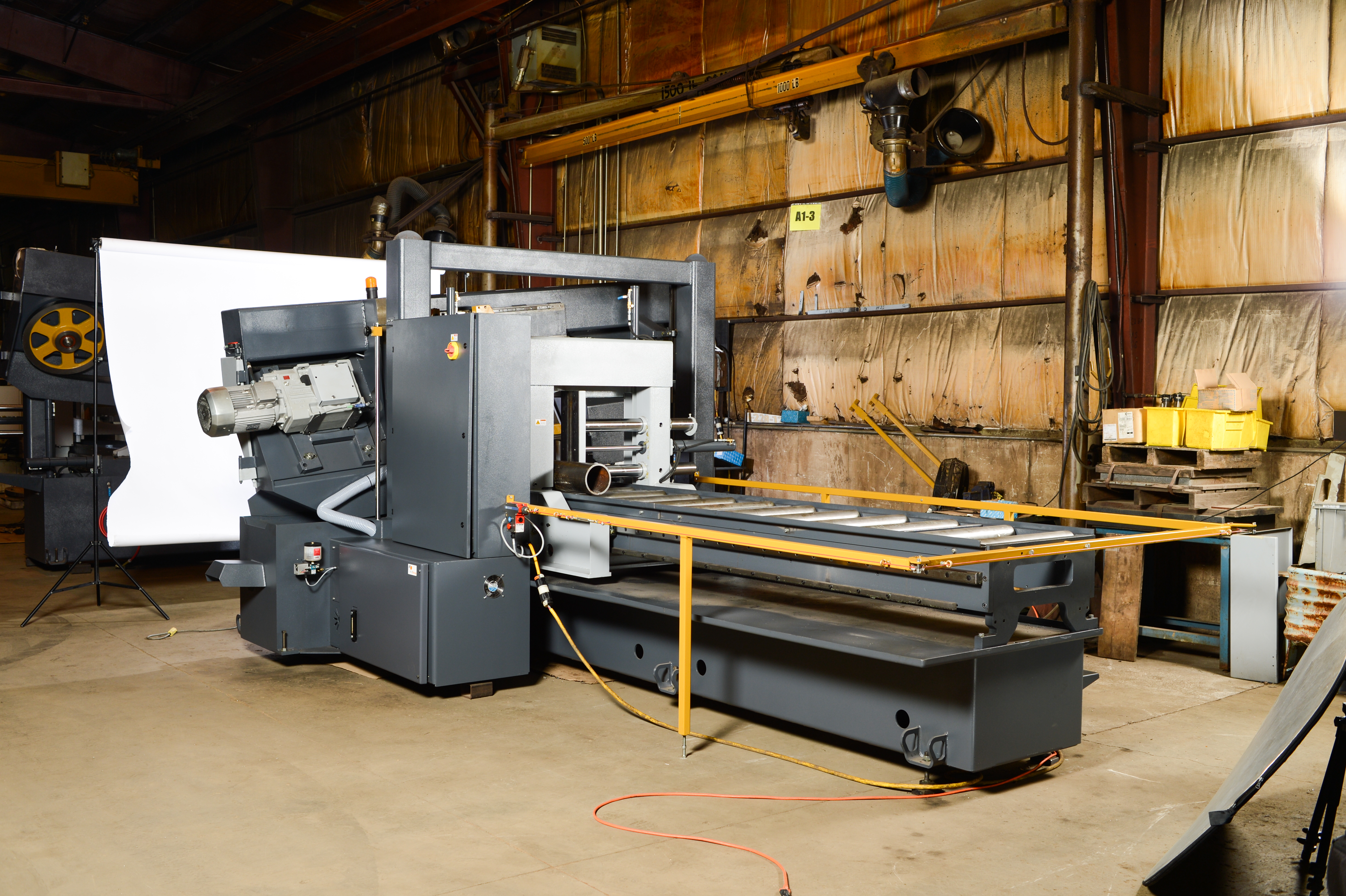

H-22A-120
The H-22A-120 is a heavy-duty, automatic, horizontal long bar feed band saw designed to provide exceptional cutting performance in multi-shift, high production environments. This highly versatile guillotine style machine can be utilized for a wide variety of material applications, ranging from mild steels and aluminum’s to stainless, tool steels and more exotic high temperature alloys.
No matter what the application it can provide cut quality that is second to none.
Need a Price Quote or More Information?
Fill Out Our Online Contact Form or
Tool Free --> (877) 761-0055
The machine’s PLC 100 controller can be easily programmed for up to 99 different jobs. The easy programming of the E 300 interface, and the user-friendly manual control switches make for minimum job setup time and cost effective operation. The full capacity hydraulic overhead bundling clamps provide for efficient high production cutting of various material bundles.
The H-22A-120 is fast, with its high speed shuttle feed indexing up to 120″ in a single movement. Its standard 6° degree canted head allows for more efficient cutting and improved blade life.
Featuring a 20″ x 22″ capacity, 10 HP motor, and 2″ blade, the H-22A-120 is a reliable choice for all your heavy-duty horizontal metal cutting applications.
| Rectangular Capacity at 90° | 22” H x 22” W |
| Blade Size | 2″ x 22′ 6″ |
| Blade Drive | 10 HP |
| Operation | Automatic |
- 10 Hp Motor
- 120" Shuttle Stroke
- 2" Blade
- Hydraulic Carbide Guides
- Powered Blade Brush
- Hydraulic Blade Tensioning
- PLC Controls
- 6° Canted Head
- Coolant System
- Out of Stock Switch
- Vertical Rollers
- Variable Vise Pressure
- Mist Lubrication System
HYDMECH H-22A-120 HEAVY-DUTY, AUTOMATIC,
HORIZONTAL LONG BAR FEED BAND SAW
