H-22A
The H-22A is an automatic horizontal band saw providing accurate 90° metal cutting for heavy-duty applications.
The H-22A is fast, with its high speed shuttle feed indexing up to 34″ in a single movement. Its optional 6° degree canted head, recommended when cutting larger beams, structural steel, and bundles of square tubing allows for more efficient cutting and improved blade life

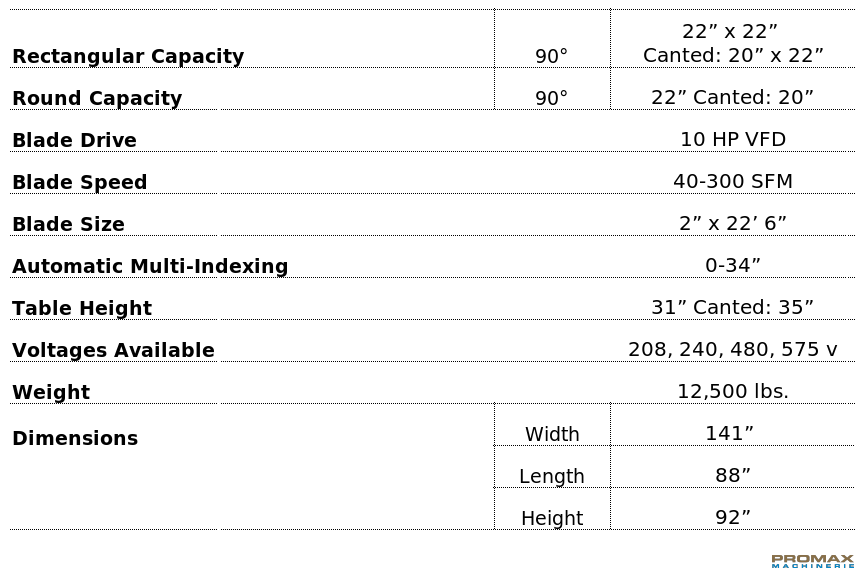

Featuring a 22″ x 22″ capacity, 10 HP motor, and 2″ blade, the H-22A is a reliable choice for all your heavy-duty horizontal metal cutting applications.
- One piece design – no alignment necessary
- Spilt front vise allows for short remnant length
- Shuttle features automatic multi-indexing up to 34” in a single stroke with automatic kerf compensation
- Cast iron guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times
- Hydraulic positive down feed
- Blade chamber separates material from cut part
- 10 HP VFD. True direct blade drive – no belts/pulleys Full capacity, full stroking hydraulic vises
- High resolution feed rate valve allows for constant feed rate when cutting special alloys

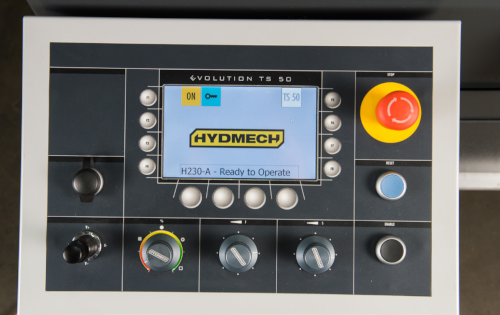

Cast iron band wheels - Automatic PLC control programmable up to 99 jobs with 5 in queue
- Replaceable blade brush
- Robust steel base
- Automatic chip removal auger
- Easy access electrical panel and hydraulics
- Blade breakage switch
- Hydraulic band tensioning with digital readout
- Hydraulic carbide guide tensioning
- Hardened, replaceable wear plates
- Safety door interlocks
- Flood coolant with wash down hose
- Work light
- Full capacity hydraulic overhead bundling
- Variable vise pressure
- 6 degree canted head
- Blade deviation
- Mist lubrication
- Out of stock switch
- Outboard vise
- Outboard vise/w bund
- Pedestal control
- Roller discharge table
- Vertical alignment rollers
- Laser light
- Idler & powered conveyors
- Powered conveyors
HYDMECH H-22A AUTOMATIC HORIZONTAL BAND SAW
