DM-1318P

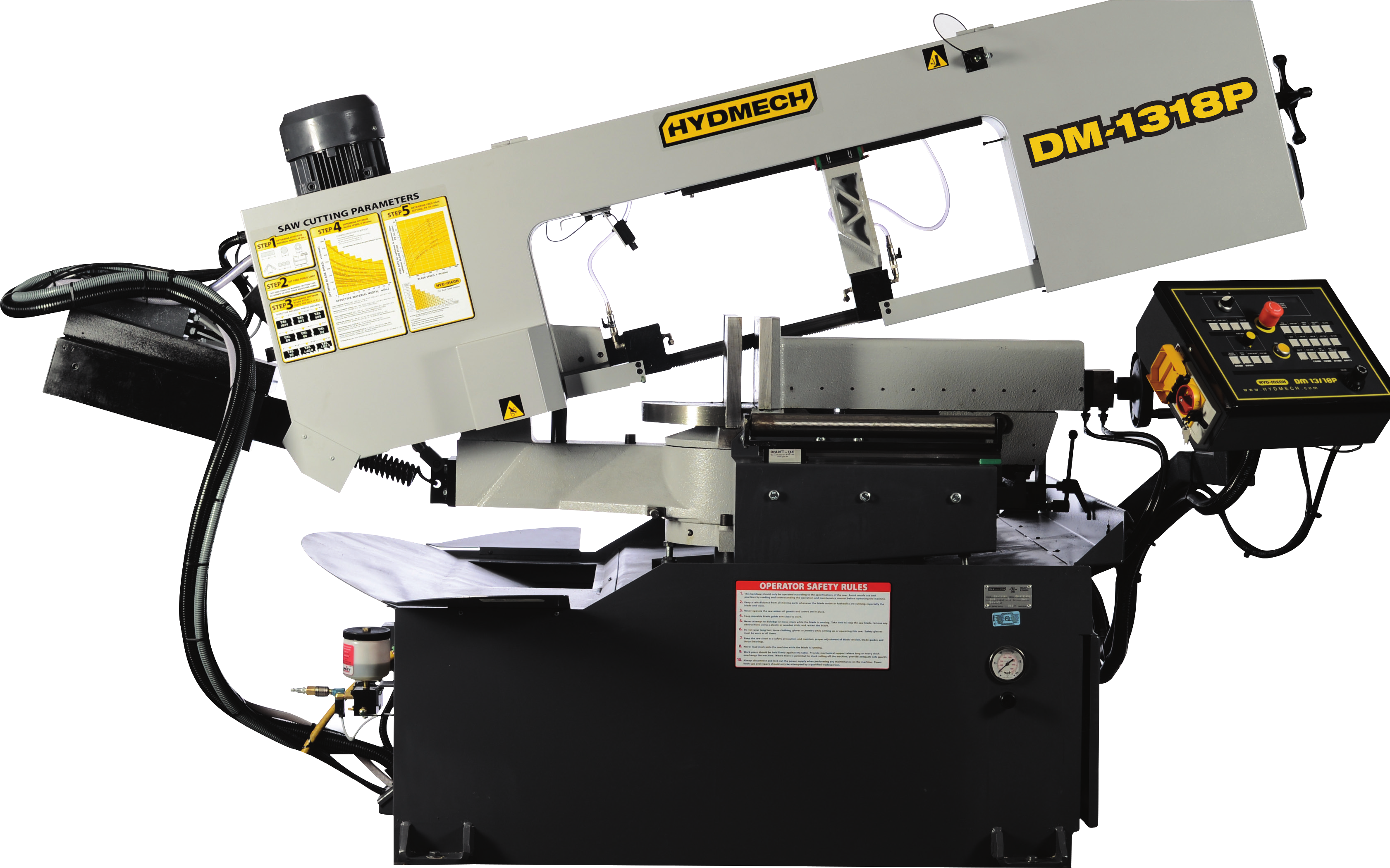

The DM-1318P double miter, semi-automatic band saw provides exceptional miter cutting for medium duty applications.
Its versatile swing head with easy to read angle scale, saves operator time. The heavy-duty gearbox and motor assembly ensures the DM-1318P will deliver maximum productivity. The cast iron double swivel head features an easy to read angle scale and “quick” stops at 90, 45, and 60 degree positions. The cast iron vise slides on linear ways which can be easily positioned to either the left or right side of the head and includes a quick release mechanism for rapid positioning.

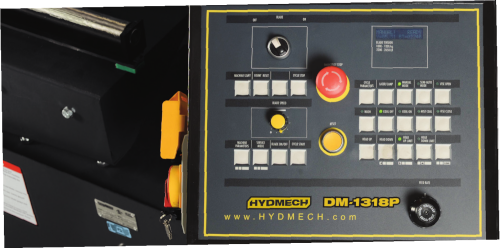

CONTROL CONSOLE - DM-1318P
The DM-1318P is also equipped with a digital LCD display which shows machine mode, pieces cut, blade speed, blade tension, amperage draw of blade motor, cut duration, overall machine run time, head position language selection. Hydraulic head height selection using an encoder is controlled from the machine console.

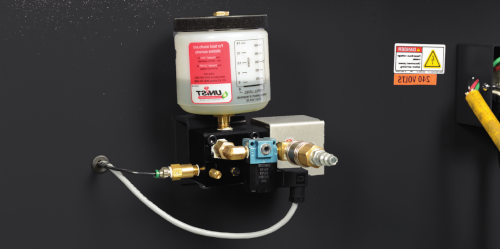

OPTIONAL MIST LUBRICATION
An alternative to the standard flood coolant system, mist lubrication is an air mist system providing blade lubrication and cooling. No recovery is required as the mist dissipates.

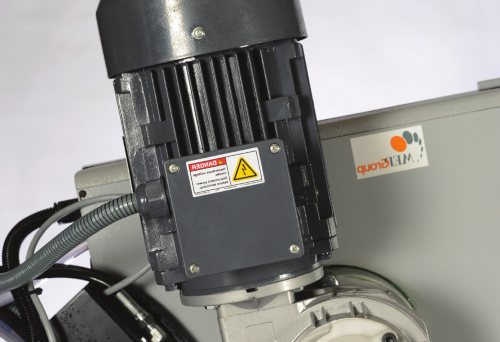

5.5 HP TRUE DIRECT BLADE DRIVE
Heavy-duty 2-stage gearbox and motor is easily adjusted with a wide range of band speeds. Less moving parts compared to belt and pulley drive machines controlled by an AC inverter drive. Blade speed

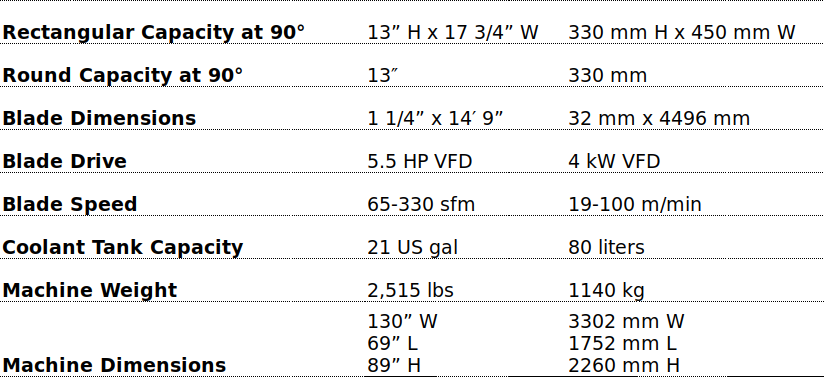

Featuring a 13″H x 17 3/4″ W capacity at 90°, 5.5 HP motor, and 1 1/4″ blade, the DM-1318P is a versatile double miter band saw.
- 60° Mitering in both directions
- Heavy duty cast iron saw head
- 5.5 HP true direct blade drive – no belts/pulleys
- On-demand hydraulics save energy
- Quick release, hydraulic cast-iron vise on linear ways
- Rotating table with cut line
- Mechanical band tensioning with digital readout
- Gravity head feed
- Automatic hydraulic head lifting in semi-automatic mode
- Swing away, semi-automatic control
- Replaceable blade brush
- Robust steel base
- Easy to read angle scale
- Digital angle display
- Adjustable guide arm
- Replaceable carbide guide inserts
- Mechanical blade tensioning
- Safety door interlocks
- Flood coolant
- Laser light
- Mist lubrication
- Work light
- Variable vise pressure
- Idler conveyors
HYDMECH DM-1318P DOUBLE MITER SEMI-AUTOMATIC BAND SAW
