COLD SAW
SEMI-AUTOMATIC VERTICAL COLUMN

C370-2SI

The C370-2SI is a semi-automatic vertical column cold saw with the largest capacity in our cold saw line up. The C370-2SI miters from 60° left to 45° right.

ProMaxMachinerie Call for Price

Featuring a 4 3/4″ round hollow capacity, 7.5 HP motor, and 14 1/2″ blade, the C370-2SI is the ideal choice for quick, clean, accurate metal cutting.

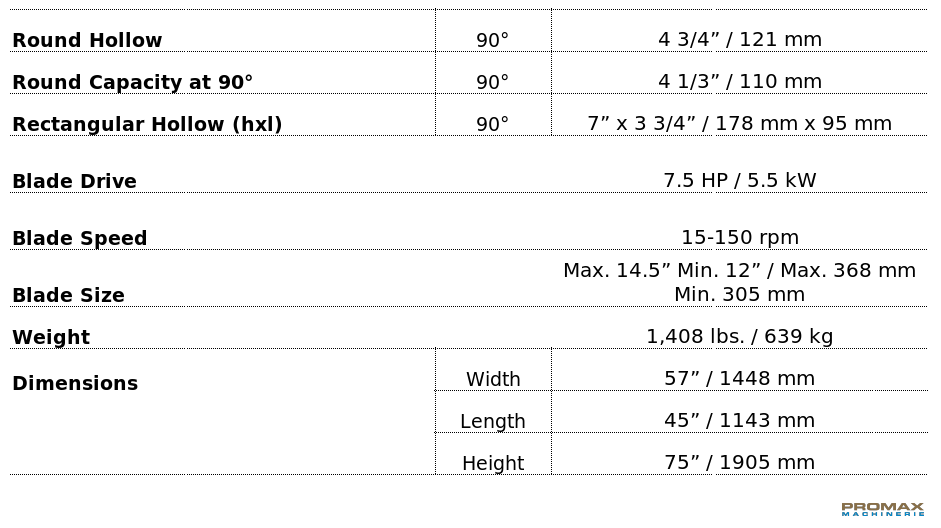

C370-2S Technical Specification

Standard-features

  • Semi-automatic operation

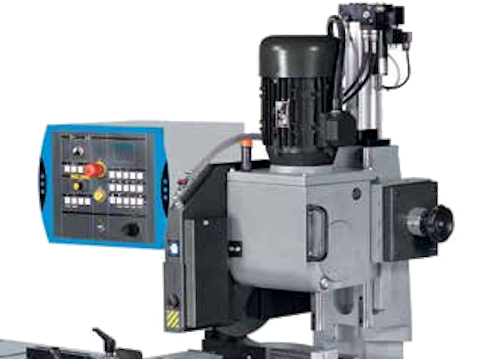

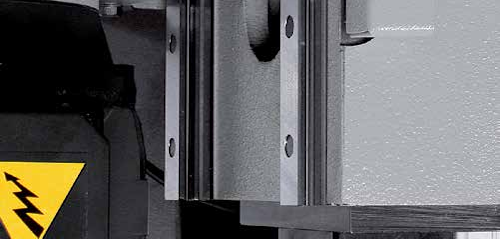

  • Heavy duty gear box coupled directly to saw makeup the robust saw head with manual movement on adjustable dual precision linear rails
  • Robust sawing head miters 45° left and right, and 60° left
  • Infinitely variable blade speed from 15-150 rpm
  • Anti-burr clamp with double locking system
  • Vertical pneumatic vise
  • Pneumatic operating vise capable of sliding on dovetail to adjust with saw head mitered position
  • Enclosed steel base with chip drawer and coolant tank
  • Replaceable blade brush
  • Ergonomically positioned control panel includes main disconnect, programmable sawing stroke,saw head feed rate control, and LED display for machine diagnostics
  • Adjustable material stop with ruler

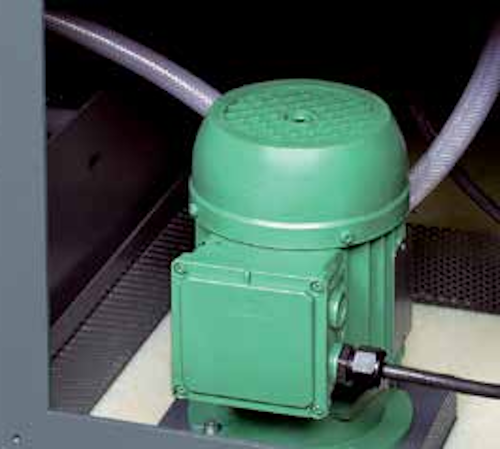

  • Flood coolant with electrical coolant pump
  • One blade included

Options

  • Foot pedal control with emergency stop
  • Second pneumatic horizontal operating vise
  • Mist lubrication system
  • K40 5’ roller table
  • “Flip over” material stops with 60” ruler
  • R2 ruler extensions for out feed roller tables
  • Roller table support stands (extra legs)
  • Roller table adapter – required if ordering roller table for out feed
  • HSS Oxide Coated Blade



HYDMECH C370SI SEMI-AUTOMATIC
VERTICAL COLUMN COLD SAW CUTTING
