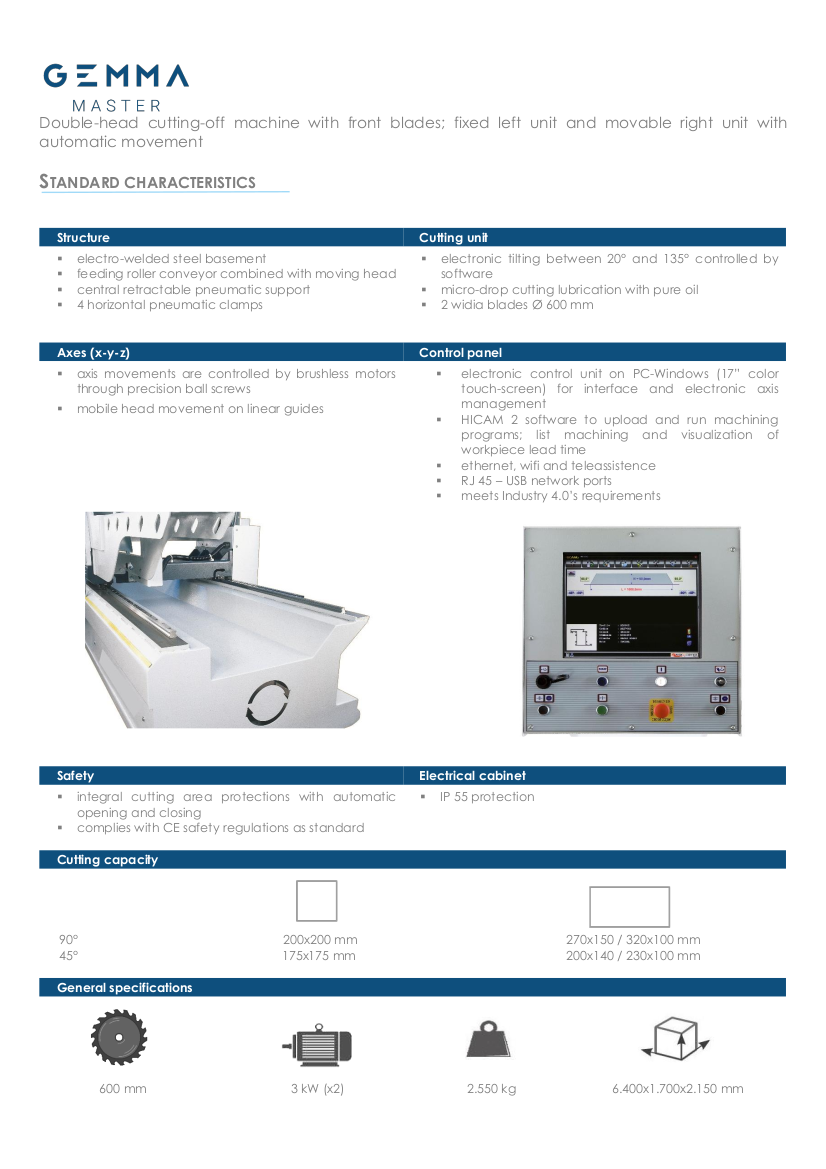

Two-head miter saw with front blades. Strongly ribbed base in electro-welded steel. Left cutting unit fixed, right unit with automatic movement controlled by software. Feed roller combined with the mobile head. Master A is equipped as standard with 4 horizontal pneumatic clamps.

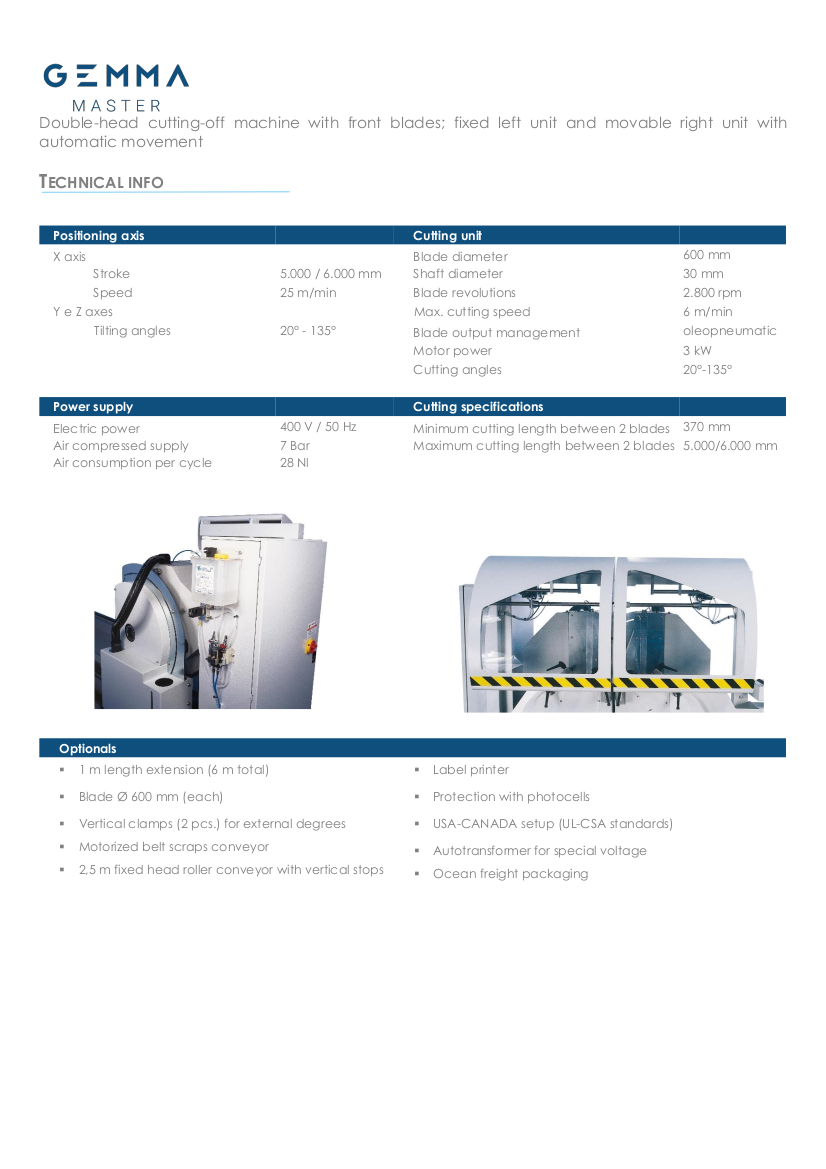

The cutting units are controlled by a 3 kW motor at 1.800 rpm and are equipped as standard with 600 mm diameter widia blades. Micro-drop cut lubrication. X-axis travel of 5.000 mm (optional 6.000 mm). X axis movement on linear guides with rectified rack. Inclination angles from 20° to 135° with electronic adjustment. Possibility of working on pieces even longer than the X-stroke.

Operator interface on PC-Windows equipped with 10,4” color touch screen. The machine is equipped as standard with safety and protection devices in compliance with CE regulations.
